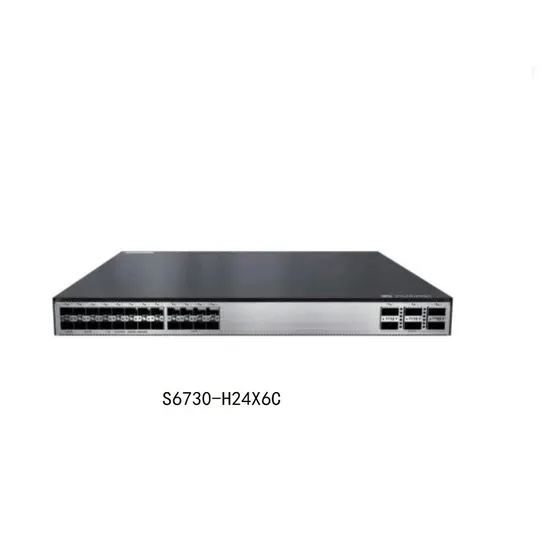

S6730-H24X6C 02352FSG 02353GFC S6730-H Series 24*10ge SFP+ Ports, 6*40ge Qsfp28 Ports Network Switch

Product Description

Product Description
S6730-H24X6C (02352FSG/02352FSG-001/02352FSG-005/02352FSG-007/02353GFC/02353GFC-001/02353GFC-003/02353GFC-004)
Industrial Gigabit Ethernet Switch, Fiber Optical Network Switch, SFP Fast Fiber Optic Switch Source Factory Supply
HW CloudEngine S6730-H48X6C 48 Port 10G SFP+ Switch S6730-H24X6C Model: S6730-H24X6C - HW S6700 Series Switches Detail: HW S6730-H24X6C (24*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28)
Detailed Photos

Product Parameters
Item
Description

Memory (RAM)	4 GB
Flash	2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	62.27 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	N/A
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (with packaging)	8.9 kg (19.62 lb)
Stack ports	Any 10GE SFP+ ports (a maximum of 16 physical ports) Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% through put, full speed of fans)	254 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	149 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 65 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02352FSG 02352FSG-001 02352FSG-005 02352FSG-007 02353GFC 02353GFC-001 02353GFC-003 02353GFC-004
