P8000 pile integrity test equipment Pile Integrity Tester

Product Description

Product Description

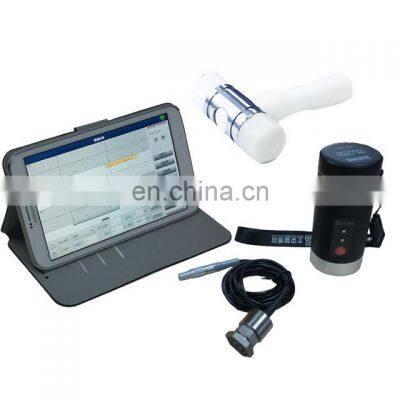

Product DescriptionDetails ImagesProduct NameZBL-P8000 Multi-channel Pile Dynamics Pile Integrity Tester Sentinel Magnify(time)1.2.4.8.16.32 adjustableA/D resoulution(bit)A/D resoulution(24 bit)Sampling time intervals(μS)6.4-204.8adjustableMax length of sampling2048TriggerSignal triggerNoise voltage of the system(mV)≤2Dynarnic Range(dB)≥144Amplifier frequency range(Hz)1~20KTime value error2048Time resolving power(us)≤10%Gain Error(dB)≤1%Work time(h)>8Number of channels1Interference between the channels≤1%Transducer/Probe Sensitivity(Acceleration mode) (mv/g)≥100Frequency range of Probe(Acceleration probe) (Hz)0.5~9000Operational EnvironmentTemperature(℃): -10~+50Humidity (RH) :<90%Power supplyInternal:Built-in BatteryExternal: 220VAC/DCFeaturesZBL-P8000 Wirless Pile Integrity TestingBy using the reflected wave method, the instrument is used to assess the integrity of concrete pile and identify the extent and location of the pile defect. It can be used for testing drilled piles and hammer piles. It can also be used for testing theexposed top surface of constructions such as pillars.• Intelligent sensor can complete the acquisition work by himself, and upload the data to the computer through the WIFI, get rid of signal wire entanglement, efficient, fast and smooth;• True 24 bit A/D data acquisition, the test wave form is more real, to avoid the noise and signal distortion caused by largefloating point amplification;• The real-time analysis of detected waves, a new wave let analysis in complex situations can be more accurate to judge pile integrity;• Intelligent upgrade detection software in the PAD onlineApplicationProduct packagingWireless sensors1 unitPad Samsung Note 7"1 unitHammer stocked with interchangeable tips1UnitBattery charger1UnitCarrying case1UnitRelated ProductZBL-R630A Rebar scannerZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter,orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium.ZBL-R800 Multifuncational Rebar detectorZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers,measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.TEM912 Digital concrete test hammerTEM912 Series DIGITAL TEST HAMMER automatically Record, Save, Calculate and Processing data.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:info at TEL:86-411-39685079Whatsapp/WeChat:+8615541112235web:/
