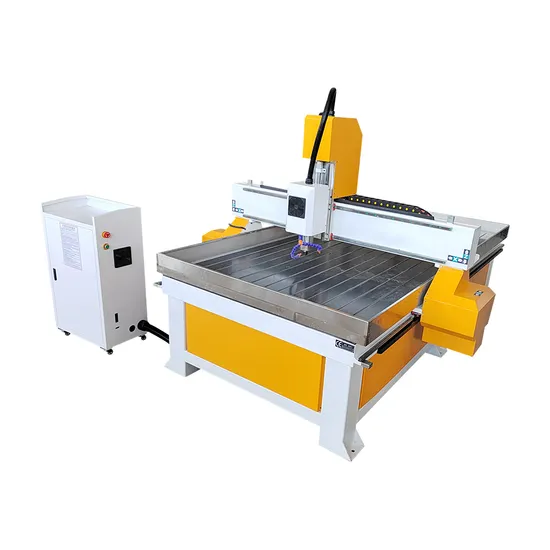

Marble CNC Carving Router Stone Granite Engraving CNC Router Machine 1325 for Tomb Making

Product Description

marble CNC carving router stone granite engraving CNC router machine 1325 for tomb making
Our Advantages
1.Lathe bed,We use thicker tube weld lathe bed,and foot leg size is 200*200mm. With
supporting block for foot-pad
Durable helical designs to adjust the machine with standard level when put on rough ground , which can ensure machine working stability.
2.Heavy duty gantry 10mm square tube welding ,gantry,stronger, stable, and Durable,
3.X Y axsi transmission is with China good brand helcial and 20mm squareguide rails
4.Water tank/Machine adopts stainless steel made water tank for water cirction whenwork for hard material,such as aluminum, marble, coopper,water hose for cooling bits,
5.Autoamtic oil lubrication
Oil pump:
Oil time and stop time set well before delivery.
Low noise, high efficiency, easy to operate.
Timed quantitative automatic lubrication.
Lubrication of moving parts, such as guide rails and ballscrew, to
extend their lifetime.
Oil level alarm: When oil is insufficient, add lubricating oil in time
Detailed Photos

Product Parameters

Model NO.	LD1325
X Y Z Traveling Area	1300*2500*200mm
Table Structure	Aluminum profile
X Y Transmission	XY is with helical helical Rack Gear
Z Transmission	TBI brand ball screws
X Y Z Guide Rail	TAIWAN HIWIN 20mmSquare Rail
Spindle Power	3.2KW Water Cooling
Spindle quantity	1 PIECE
Max. Spindle Power	24000 r/min
Max. Traveling Speed	15 m/s
Max. Working speed	10 m/min
Driving System	Stepper motor and leadshine driver
Command Language	HPGL, G Code
Software	Castmate Artcam Typs 3 March 3 Wentai
Operation System	Mach 3 controller
Working Voltage	AC380V, 3p.50HZ/220V,3P.50HZ
Packing	Wooden case
Net Weight/Gross Weight	1300KGS /1500KGS
Package Dimension	3.2*2.15*2.2m
Payment	TT with 30% in advance and the balance need to be paid before shipping

Application
Machine samples
.. Designed specifically for customers who require large quantities of small workpiece processing. It is suitable for processing cabinet doors, art relief screens, craft windows, relief craft gifts, solid wood art murals, woodworking calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arc, carving and cutting of non-ferrous metals, etc. industry
