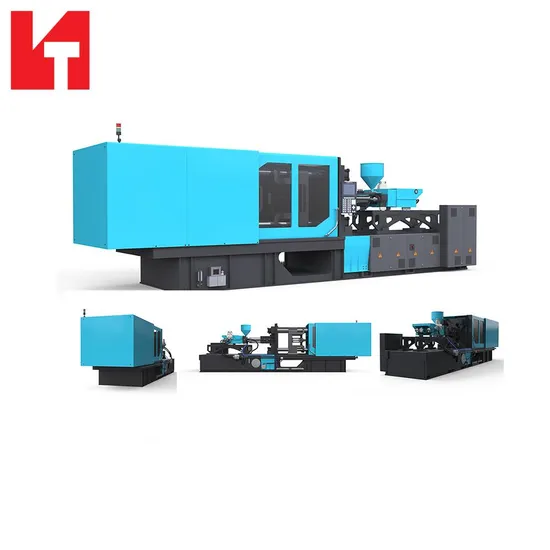

4000kN China′s Injection Molding Machine
Basic Info.
Model NO.
NT400
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Marketing Type
Hot Product
Core Component
Motor, PLC
Material
Stainless Steel
Applicable Industrial
Manufacturing Plant
Voltage
380V/50Hz 3p+N+E(Alterable)
Function
Plastic Parts Production
Mold
Can Be Customizable
Clamp Force
4000kN
Space Between Tie Bars
730*730
Transport Package
at Seller′s Option
Specification
7.6m*1.85m*2.35m
Trademark
Leantall
Origin
China
Packaging & Delivery
Package Size
760.00cm * 185.00cm * 235.00cm
Package Gross Weight
16000.000kg
Product Description
Product Parameters| Part | Name | Unit | NT400 | ||
| Injection Unit | SCREW DIAMETER | mm | 70 | 75 | 80 |
| SCREW L/D RATIO | L/D | 21.4 | 20 | 19 | |
| INJECTION STROKE | mm | 390 | 390 | 390 | |
| NJECTION SPEED | Mm/sec | 97 | 97 | 97 | |
| SHOT VOLUME(THEORETICAL) | CM3 | 1501 | 1723 | 1960 | |
| INJECTION WEIGHT(PS) | g | 1366 | 1568 | 1784 | |
| INJECTION PRESSURE | Mpa | 194 | 169 | 148 | |
| INJECTION RATE | cm³/sec | 373 | 428 | 487 | |
| SCREW SPEED | rpm | 170 | |||
| Clamping Unit | CLAMP FORCE | Kn | 4000 | ||
| OPEN STROKE | mm | 725 | |||
| SPACE BETWEEN TIE BARS | mm×mm | 730X730 | |||
| MAX.MOULD HEIGHT | mm | 780 | |||
| MIN.MOULD HEIGHT | mm | 250 | |||
| EJECTOR STROKE | mm | 150 | |||
| EJECTOR FORCE | Kn | 79 | |||
| EJECTOR NUMBER | N | 13 | |||
| Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
| SEVRO DRIVE POWER | Kw | 55 | |||
| HEATING POWER | Kw | 29.5 | |||
| MACHINE DIMENSION(L*W*H) | m×m×m | 7.6*1.85*2.35 | |||
| MACHINE WEIGHT(ESTIMATE) | T | 16 | |||
Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
