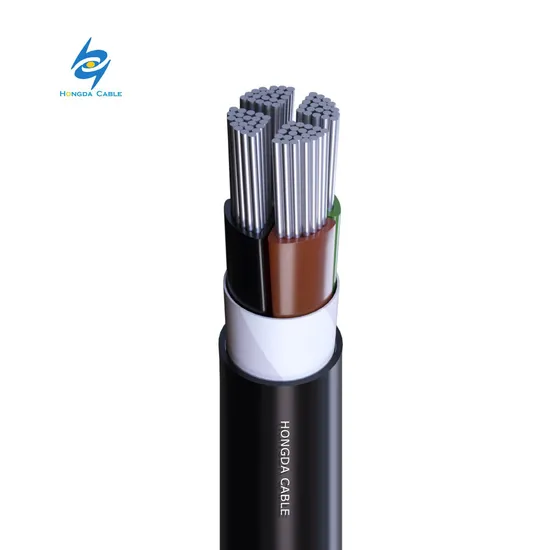

EAY2Y Power cable 0,6/1kV with Al conductors PVC insulated HDPE sheathed
DESIGN
1 | Aluminum conductor, round solid (RE), round stranded (RM), resp. sector-shaped stranded (SM)
2 | Core insulation (PVC)
3 | PVC core covering or taping
4 | outer sheath of HDPE (High Density Polyethylene)
APPLICATION
Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains. For fi xed installation underground, in interior premises, cable ducts, in the open air, in water - as permitted by the local building regulations - if no risk of any mechanical damage is to be expected.
TECHNICAL DATA
Standard: IEC 60502-1
Rated voltage: 0.6/1 kV
Test voltage: 3.5 kV/50 Hz
Temperature range: laying temperature: min. -5 °C operating temperature: -30 °C up to +70 °C conductor temperature: max. +70 °C short-circuit temperature: max. +160 °C/5 s
Bending radius (min.): 15 x ? of cable (single core) 12 x ? of cable (multi-core)
Core identifi cation: HD 308 S2
Fire properties: flame retardant: EN 60332-1-2
E-AY2YPVC Insulated Cable with Aluminium ConductorNumber of cores and
nominal cross section
mm2Aluminium
figure
kg/kmOverall
diameter
appr.
mmWeight
appr.
kg/kmCurrent
carrying
capacity ground
ACurrent
carrying
capacity air
A

1 x 25 RM	74,0	11	174,0	106	87
1 x 35 RM	103,0	12	209,0	127	107
1 x 50 RM	147,0	14	282,0	151	131
1 x 70 RM	206,0	16	363,0	185	166
1 x 95 RM	279,0	18	520,0	222	205
1 x 120 RM	353,0	19	557,0	253	239
1 x 150 RM	441,0	21	674,0	284	273
1 x 185 RM	544,0	24	826,0	322	314
1 x 240 RM	706,0	26	1052,0	375	378
1 x 300 RM	882,0	29	1282,0	425	437
1 x 400 RM	1.200,0	32	1598,0	487	513
1 x 500 RM	1.510,0	36	2022,0	558	600
1 x 630 RM	1.900,0	40	2200,0	635	701
3 x 240/120 SM	2.470,0	55	4215.0	364	338
4 x 25 RM	294,0	25	887,0	102	82
4 x 35 SM	412,0	26	796,0	123	100
4 x 50 SM	588,0	27	1017,0	144	119
4 x 70 SM	823,0	30	1312,0	179	152
4 x 95 SM	1.117,0	34	1698,0	215	186
4 x 120 SM	1.411,0	40	2459,0	245	216
4 x 150 SM	1.764,0	43	2594,0	275	246
4 x 185 SM	2.176,0	50	3777,0	313	285
4 x 240 SM	2.822,0	54	4106,0	364	338
4 x 150 SE	1.764,0	45	2594,0	275	246
5 x 25 RM	368,0	26	1018,0	102	81
5 x 35 RM	515,0	30	1316,0	121	99
5 x 50 SM	781,0	32	1549,0	144	119
5 x 70 SM	1.071,0	37	2021,0	179	152
5 x 95 SM	1.484,0	41	2598,0	215	186
5 x 120 SM	1.875,0	47	3201,0	245	216

Application:
In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.
Construction:
Conductors: Al, class 1 or 2 according to EN 60228
Insulation: PVC compound DIV 1
Bedding: Extruded elastomere or plastomere compound or plastic tape
Sheath: HDPE compound DMP 1
Technical characteristics:
Voltage rating (Uo/U): 0,6/1 kV
Min. temp. for cable laying: -5°C
Max. working temperature: 70°C
Max. short-circuit temperature: 160°C
Min. bending radius: single-core - 15D; multicore - 12D
CPR class: Fca
