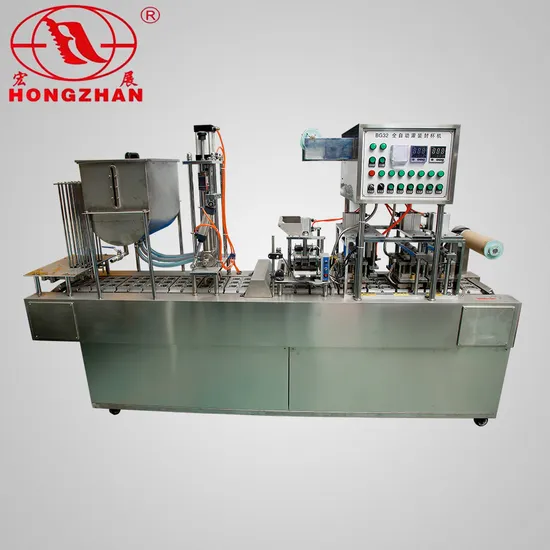

Bg32A Automatic Cup Filling Sealing Machine for Juice with Particle

Product Description

BG Series Cup filling & sealing machine
Features:
Automatic cup filling and sealing machine is mainly used for cups, bowls, boxes, barrels and containers specially shaped filling and sealing, no special requirements on the material, liquid, paste, granules, so you can mix materials.
Suitable for jelly, juice, jam, yogurt, ice cream, salad, pudding, condiments, beverages, chocolate, mineral water and other food filling and sealing.



Parameter:

Model	BG32A-2C	BG60A-4C	BG60A-8C	BG60A-10C
Output (cups/h)	1800-2000	3000-4000	7000-8000	9000-10000
Filling Range	20-500ml	20-500ml	20-500ml	20-500ml
Voltage	AC 220V / 50Hz	AC 220V / 50Hz	AC 220V / 50Hz	AC 220V / 50Hz
Power	2.5kw	3.5kw	6kw	7.5kw
Template	2 cups 1 time	4 cups 1 time	8 cups 1 time	10 cups 1 time
Control System	PLC / MCU
Capping Film	Roll Film / Sheet Film (Premade Film)
Metering Methods	Dosing Filling (liquid, paste, granule, powder)
Air Consumption	0.6 m3/min	0.7 m3/min	0.8 m3/min	0.9 m3/min
Dimensions	2200*540*1500mm	3300*710*1700mm	3900*900*1700mm	4000*1000*1700mm
Weight	400kg	700kg	1000kg	1200kg

Packing step:
1.Automatic Falling Cup
2.Automatic washing cups (Optional)
3.Automatic Filling
4.Coding Device
5.UV Germicidal (Optional)
6.Optical Positioning
7.Two Sealing
8.Automatic Cut Film
9.Waste Film Recycling
10.Array Off Cup
Video:
https://zjhongzhan.en.made-in-china.com
https://zjhongzhan.en.made-in-china.com
