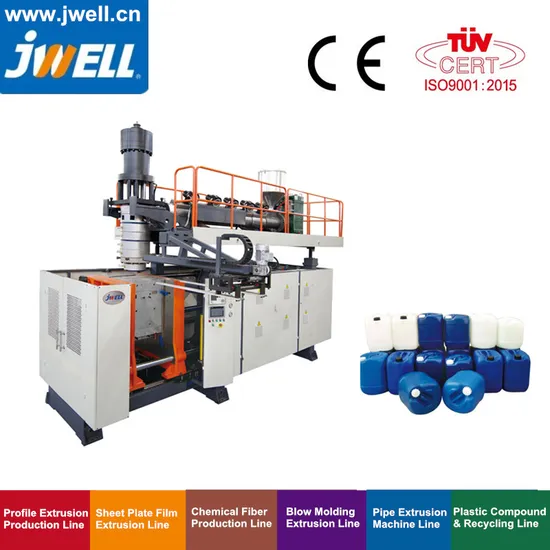

Plastic Pet Beverage Water Edible Oil Container/Can/Jerry Bottle Blow Molding Machinery/Blowing Making Machine Manufacturer

Product Description

Performance and advantages ·Suitable for producing 15-30L different size jerrycan, open-top barrels and others chemical packaging products. ·Adopt high output extrusion system, accumulating die head. ·Optional view strip line system. ·Optional hydraulic servo control system.
Technical parameters

Model	Unit	BM30
Max product volume	L	30
Dry cycle	Pc/h	600
Die head structure	Accumulating type
Main screw diameter	mm	80
Max plasticizing capacity (PE)	kg/h	120
Driving motor	Kw	37
Accumulating volume	L	5.2
Oil pump motor power	Kw	15
Clamping force	KN	280
Space between platen	mm	400-900
Platen size W*H	mm	740*740
Max. mold size	mm	550*650
Heating power of die head	Kw	20
Machine dimension L*W*H	m	4.3*2.2*3.5
Machine weight	T	12
Total power	Kw	95

Note: Information listed above are for reference only, the production
line can be designed by customer's requirements.
Control system

rts name	country	Brand
PLC and touch screen	Germany/Austria	SIEMENS/B&R
Contactor	France	Schneider
Inverter	China/Germany	JWELL/Rexroth
Parison control system	Japan/Austria	MOOG100/B&R 300
Pneumatic valve	China	Air TAC
Hydraulic Control System	China	Famous brand
hydraulic valve	China	Taiwai Yuken
Take out robot	China	JWELL
Accumulate type Die head	China	JWELL
Driving motor	Germany	SIEMENS-Beide MADE IN CHINA
Gearbox	China	Famous brand
Screw and Barrel	China

1.Control system

SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
2.Extrution & Die head
The extruder uses screw and barrel, which is a famous brand
all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
3.Blowpin system
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
4.Output system
Take out robot
5.Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Hydraulic system adopts Servo motor-oil pump control technology, Servo controller, SUMITOMO low-noise gear pump, it has the features of quick response and energy saving. This controller can save more than 50% energy than common ones.
6.Open&Closing system
Common three platen and three tie bar struction
7.Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
8.Electric system
SIEMENS CPU unit SIEMENS temperature-control unit SIEMENS digital-output unit SIEMENS analog-output unit MITSUBISHI CPU unit JWELL invertor revolving speed-control Schneider electric components
