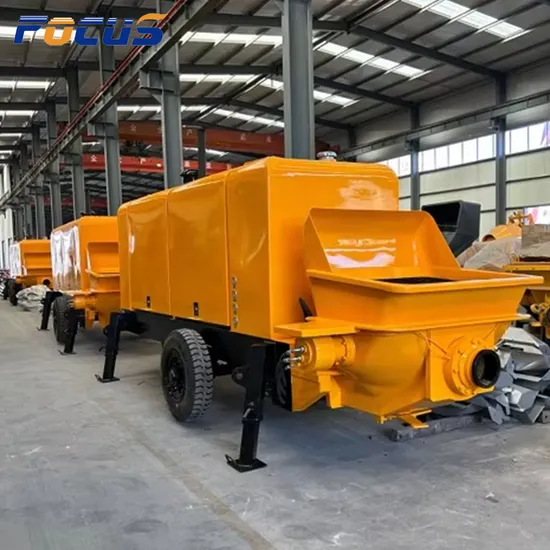

China Lower Price Concrete Machine Pump High- Speed Hydraulic Concrete Conveying Pump Exported
| US$29,998.00-59,998.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
FS-CP
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
90m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
CE
Condition
New
Color
Customized
Max. Theoretical Delivery Volume
80 Cbm/Hour
Max. Theoretical Delivery Pressure
13 MPa
Max. Vertical Delivery Distance
250 M
Max. Horizontal Delivery Distance
1000m
Capacity of Oil Tank
420L
Capacity of Hopper
600L
Output Port Diameter
150 mm
Motor Power
132 Kw
Rated Speed
1480 R/Min
Max. Oil Pressure of Main System
32MPa
Max. Oil Pressure of Mixing System
16MPa
Concrete Slump Range
80~200mm
Transport Package
Nude Packing, by Container
Specification
6170 x 1930 x 2100mm
Trademark
FOCUS
Origin
China
HS Code
8704210000
Production Capacity
50000 Untis Per Year
Packaging & Delivery
Package Size
610.00cm * 193.00cm * 210.00cm
Package Gross Weight
100.000kg
Product Description
Product DescriptionChina Lower Price Concrete Machine Pump High- Speed Hydraulic Concrete Conveying Pump Exported
Concrete trailer pump is a kind of concrete pumping equipment used to pump mixed liquid concrete to the construction site. Usually, the position of the drag pump needs to be fixed before construction, and the pipeline should be laid in advance.According to the pumping capacity, it can be divided into 30 pumps, 40 pumps, 60 pumps, 80 pumps, 90 pumps, etc. As the name suggests, it pumps 30-90 cubic meters per hour. Among them, the small mini drag pumps 30 pumps and 40 pumps are more suitable for small and medium-sized projects such as rural housing construction.
Detailed Photos
Pumping structure of hydraulic concrete pump
1 and 2: main oil cylinder; 3: water tank; 4: reversing device; 5 and 6: concrete cylinder; 7 and 8: concrete piston; 9: hopper; 10: S valve; 11: swing arm; 12 and 13: swing cylinder; 14: outlet
Packaging & Shipping
Product Parameters
| Item | Unit | Parameter | |
| Pumping system | Max. theoretical delivery volume | CBM/Hour | 80 |
| Max. theoretical delivery pressure | MPa | 13 or 16 | |
| Max. delivery frequency | times/min | 26(low pressure); 16(high pressure) | |
| Max. vertical delivery distance | m | 250 | |
| Max. horizontal delivery distance | m | 1000 | |
| Delivery cylinder specification | mm | 200 x 1650 | |
| Main oil cylinder specification | mm | 140/90 x 1650 | |
| Capacity of oil tank | L | 420 | |
| Capacity of hopper | L | 600 | |
| Feeding height | mm | 1400 | |
| Output port diameter | mm | 150 | |
| Inner diameter of conveying pipe | mm | 125 | |
| Power system | Motor power | Kw | 132 |
| Rated speed | r/min | 1480 | |
| Hydraulic system | Type of hydraulic oil circuit | Open circuit | |
| Max. oil pressure of main system | MPa | 32 | |
| Max. oil pressure of mixing system | MPa | 16 | |
| Max mixing rotate speed | r/min | 24 | |
| Other parameters | Concrete slump range | mm | 80~200 |
| Allowed max. aggregate diameter | mm | Pebble50, crushed stone 40 | |
| Dimension (length *width * height) | mm | 6170 x 1930 x 2100 | |
| Pulling speed | Km/h | ≤8 | |
