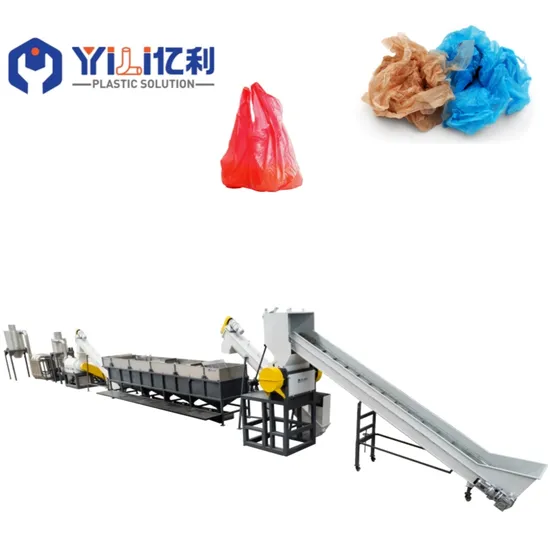

Advanced Small Capacity Plastic Recycling Machine for PP Film Waste

Product Description

Applicable Material:
Our state-of-the-art Heavy-Duty Waste Plastic Recycling Machine is expertly designed for the recycling of various materials, including PE/PP Films, industrial films, city garbage film, and PP woven bags. It efficiently handles raffia jumbo bags, ensuring a comprehensive solution for all your recycling needs.
Introduction
The innovative waste plastic film recycling and washing line crafted by YILI Machinery is the pinnacle of recycling technology, adeptly handling a diverse array of soft plastic materials such as PE or PP plastic film, PP woven bags, and waste agricultural films. This advanced line also accommodates waste soft drip irrigation pipes, industrial packing films, and supermarket packing films. The comprehensive production line includes cutting-edge equipment such as shredder, crusher, frication washer, floating tank, and squeezer, boasting capacities from 300 to 1500 kg/hr. Our film washing line guarantees precise and efficient decontamination of waste films using both cold and hot washing systems, integrating the most advanced recycling technologies. The final, impeccably clean products can be used either standalone or blended with other materials for reprocessing, suitable even for new film blowing applications.
Technical Parameters

Model	Capacity (kg/hr)	Power installed (Kw)	Water consumption (ton/hr)	Manpower
QX300	300-400	160	0.5	3
QX500	500-600	200	1.2	3
QX1000	800-1000	250	3	4
QX1500	1300-1500	325	4	4
QX2000	1800-2000	415	4	4

Tech Features & Advantages This cutting-edge production line offers fully automatic control, a streamlined process, high production efficiency, and impeccable cleanliness; Our innovative system easily separates mud, sand, and other impurities from films and bags; Equipped with a pre-treatment system inclusive of a Pre-washer and Label processing, it remarkably enhances the quality of the end product; Incorporates advanced centrifugal dewatering and squeezing technology; Features easy maintenance, low energy consumption, and an extended operational lifespan
Main Machines For the line
Belt conveyor

Choose from both light and heavy-duty types of belt conveyors. Each option includes a dependable gearbox motor and side walls to prevent material loss. For enhanced efficiency, you can opt to install a metal detector on the belt conveyor.
Shredder For sizable raw materials like large plastic drums, tanks, lumps, or die head material, our robust shredder performs initial grinding flawlessly. Post this preliminary crushing, materials are moved to a secondary crusher for further refinement, achieving final material sizes under 12mm. This optimizes cleanliness and efficiency. YILI offers a diverse series of shredders tailored to different capacities and functionalities to cater to varied customer needs.
Crusher
Our crusher is engineered to reduce material size efficiently while incorporating water for cleaning and blade cooling during processing. It transforms large materials into smaller pieces, significantly boosting washing results and simplifying final product packaging.
Frication Washer The frication washer is a marvel of design, spinning at high speeds with water to effectively eliminate contaminants, dirt, and grease from materials. Post-wash, materials are directed to the floating tank for enhanced cleaning.
Floating tank
In this module, sediment and metals are meticulously separated from the material. Each washing wheel is intricately designed to meet specific washing functions, with inverter-controlled speed. A magnetic valve at the bottom discharges dirt efficiently as per settings, all made from premium stainless steel.
Centrifugal Dryer The horizontal centrifugal dryer offers superior performance and energy efficiency when drying plastic flakes. Its grid mesh is self-cleaning, with a timer setting that facilitates both washing and drying of materials seamlessly.
Hot air pipeline heating
Crafted from stainless steel, the pipeline directs hot air to further dry materials, effectively reducing moisture content for optimal recycling outcomes.
