US$45.00-150.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
CX-UWM-TDS-100W-DN65
Medium Temperature
Cold Water
Counter Instructions
Digital and Analogue
Application
Civil, Industrial
Principle
Speed of Water Meter
Medium Pressure
General Water Meter
Work Environment
Liquid Sealed Water Meter

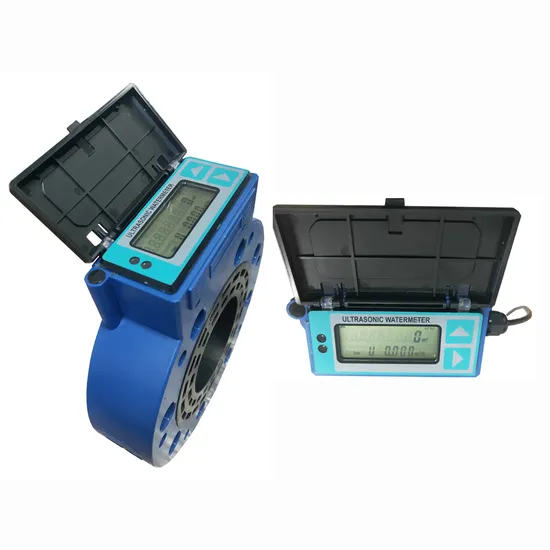

Product Name
Ultrasonic Water Meter
Fluid Temperature
0.1ºC~+30ºC
Transport Package
Carton/Polywood Case /Wood Case
Production Capacity
5000PCS/Month
Product Description
Product Description This series of water meter's production process is automatic or semi-automatic, including automatic detection of circuit boards, the automation of the circuit board's high-low temperature teat machine, the automation of potting and calibration process, ensuring that every machines out of the factory are qualified.
| Product Name | Ultrasonic water meter |
| Executive standard | ISO 4064-2005,GB/T 778-2007,JJG 162-2009 |
| Measuring fluid | Water, raw water, sea water, and filled pipes |
| Pipe diameter | DN50~DN150 |
| Working pressure | PN16/25 |
| Accuracy | 1% |
| Fluid temperature | 0.1ºC~+30ºC |
| Work environment | Temperature: - 10 ºC ~ + 45 ºC; humidity ≤ 100% RH |
| Under pressure | 1.6Mpa |
| Communication interface | RS485 / USART / IR |
| Power supply | Built in lithium battery (3.6V, 19ah) / external DC8 ~ 36V DC power supply / two wire 4 ~ 20mA power supply |
| Protection level | IP68 can work 2 meters underwater |
| Local display | Double line display includes 9-bit cumulant, 4-bit instantaneous flow, unit and various status prompts |
| Data storage | EEPROM / flash storage parameters are used to automatically record the cumulative flow of the first 128 months and the first 512 days |
| Application | Measuring the volume of cold (hot) water passing through the pipeline.water meter is used for irrigation,municipality etc |
Product Show Company Profile
