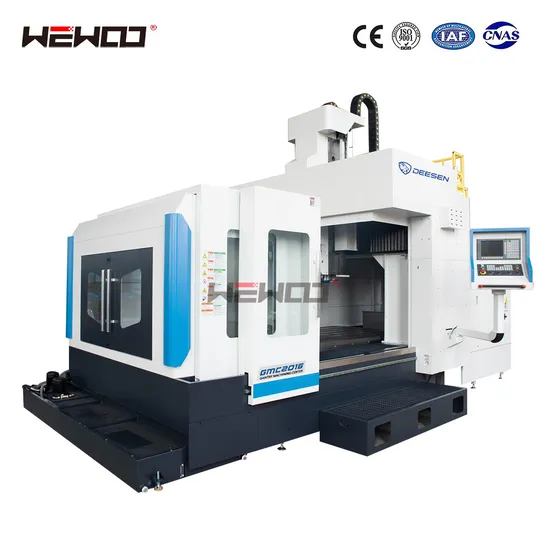

Gantry Machining Center Professional Manufacturer Gmc2016 Line Rail CNC Milling Machine
| US$64,800.00-65,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GMC2016
Type
Worktable Milling Machine
Object
Hardware
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
Customzied
Weight
18500kg
T Slot(Number-Width*Pitch)
7-22*200
Distance Between Spindle Nose and Workta
200-1000mm
Max. Worktable Load
4000kg
Max. Spindle Speed
6000rpm
Table Size
2100X1400mm
Main Motor Power
15/18.5kw
Spindle Taper
Bt50/φ190
Rapid Traverse Speed
15m/Min
Cutting Feed Speed
10m/Min
X Axis Travel
2000mm
Y Axis Travel
1700mm
Z Axis
800mm
Gantry Width/Height
1700mm/1080mm
Transport Package
Wooden Case
Specification
720cm * 450cm * 430cm
Trademark
wewoo
Origin
China
HS Code
8459619000
Production Capacity
300/Month
Packaging & Delivery
Package Size
740.00cm * 470.00cm * 450.00cm
Package Gross Weight
19000.000kg
Product Description
Gantry Machining Center Professional Manufacturer Gmc2016 Line Rail CNC Milling MachineProduct Description
Product Parameters
Technical parameter:
| Item | Unit | GMC2016 |
| X axis travel | mm | 2000 |
| Y axis travel | mm | 1700 |
| Z axis travel | mm | 800 |
| Spindle nose to worktable | mm | 200-1000 |
| Distance between two column | mm | 1700 |
| Leadscrew diameter | mm | 63/50/50 |
| Linear guideway width | mm | 55/55/Rectangle |
| Worktable Length | mm | 1700 |
| Worktable width | mm | 1080 |
| T slot qty-width*distance | mm | 7-22*200 |
| Rapid traverse speed | m/min | 15 |
| Spindle speed | rpm | 6000 |
| Spindle motor power | kw | 15 |
| Fast moving speed | m/min | 20/20/10 |
| Cutting feed speed | mm/min | 10 |
| Spindle taper | BT50 | |
| Feed motor power | kw | 15/18.5KW |
| X/Y/Z axsis motor torque | Nm | 15/15/12 |
| Tool Magazine Capacity | pcs | Disc/24 |
| Positioning accuracy | mm | 0.016/0.015/0.015 |
| Repeat accuracy | mm | 0.012/0.010/0.010 |
| Tool magazine | 24 | |
| Table load | kg | 4000 |
| Overall dimension(L*W*H) | mm | 7200mm*4500mm*4300mm |
| Machine weight(about) | kg | 18500 |
| Standard accessories: |
| Mitsubishi M80A controller |
| Spindle speed 10000rpm belt type |
| 24 tools disc type |
| Screw type chip conveyor & chip bucket *2 |
| Chain type chip conveyor & chip bucket *1 |
| Nitrogen balance cylinder |
| Air conditioner in cabinet |
| Air gun+Water gun |
| Automatic lubricating system |
| 2-Axis linear guideway from Taiwan Hiwin |
| Ball leadscrew from Taiwan Hiwin |
| Levelling pad,nut and bolts |
| Tools and tool box |
| Optional accessories: |
| Spindle oil cooler |
| CTS 20bar |
| CTS 30bar |
| Reneshaw tool probe TS27R |
| Reneshaw workpiece measurement device OMP60 |
| Gear head |
| Manual angle head |
| Auto angle head |
| Chain type ATC 32 tools |
| Chain type ATC 40 tools |
| HEIDENHAIN scales/1m |
| 4TH Axis rotary table 255mm+tail stock+hydraulic station |
| 5TH Axis rotary table 255mm+hydraulic station |
Detailed Photos
Stabilizing table
Worktable speed variable
speed, good wear resis-
tance, stable control.
Ram milling head
360-degree right-angle
milling head can be in-
stalled to realize high-pre-
cision and complex work-
piece processing.
Disk knife library
To complete a variety of dif-
ferent processing, the need
for milling drilling mantis
hole tapping, greatly shorten
the processing time, reduce
production costs.
Systerm
The system can be in-
stalled according to cus-
tomer needs all brand sys-
tems to achieve human-
ized assembly.
Company Profile
FAQ
| 1:How can I choose the most suitable machines ? |
| Answer :Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . |
| You can also send us the products drawing ,we will choose the most suitable machines for you . |
| 2: What's your main products of your company? |
| Answer :We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . |
| 3.How does your factory do regarding quality control ? |
| Answer :Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc. |
| 4. What is your trade terms? |
| Answer : FOB, CFR and CIF all acceptable. |
| 5: What's the Payment Terms ? |
| Answer : T/T ,30% initial payment when order ,70% balance payment before shipment ; |
| Irrevocable LC at sight . |
| 6: What's the MOQ? |
| Answer : 1 set .(Only some low cost machines will be more than 1 set ) |
