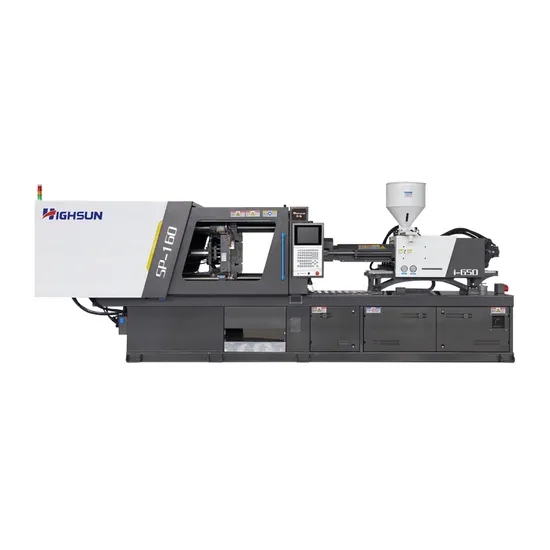

High Rigidity New Style Sp Smart Power Servo Energy Saving Injection Molding Machine Sp160

High Rigidity New Style Sp Smart Power Servo Energy Saving Injection Molding Machine Sp160

US$10,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SP160
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, SGS, TUV
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
According to Countries
Showroom Locate
Malaysia,Indonesia,Turkey,Mexico,Uzberkista,Mn
Condition
100% New
Machine Weight
5.1 Ton
Transport Package
Standard Packing
Specification
5.30*1.34*2.10
Trademark
HIGHSUN
Origin
China
HS Code
847710
Production Capacity
7000sets/Year

Product Description

The system pressure is increased to 17.5Mpa, the hydraulic system flow is increased and upgraded, and the low inertia high response servo system is adopted. It has the characteristics of large pipe diameter, short pipe length, fast response, low noise, strong power, etc., and the injection speed is fully improved.

SP100/i180 SP100/i390 SP130/i520 SP160/i650 SP200/i810 SP250/i1000 SP300/i1620 SP350/i2300
Injection Unit A B C A B C A B C A B C A B C A B C A B C A B C D
Screw diameter mm 22 25 28 32 36 40 36 40 45 40 45 50 45 50 55 50 55 60 55 60 65 60 65 70 75
Screw L/D ratio L/D 21 21 21 23.6 21 21 23.3 21 21 22.5 20 20 22.2 20 20 22 20 20 21.8 20 20 21.6 20 20 18.6
Injection capacity in theory cm³ 41 53 67 144 183 226 203 251 318 282 357 441 357 441 534 490 593 706 688 819 962 989 1161 1346 1546
Injection weight(PS) g 38 49 61 131 167 206 185 228 289 257 325 402 325 402 486 446 540 643 626 746 875 900 1056 1225 1407
Injection pressure MPa 439 340 271 239 189 153 230 186 147 234 185 150 229 186 153 236 194 163 239 201 171 233 198 171 149
Injection velocity g/s 48 63 79 71 90 111 94 116 147 130 164 203 167 206 249 204 247 294 232 276 324 312 367 425 488
Plasticizing capacity g/s 3.2 4.6 6.3 9 12 16 12 18 24 12 17 22 20 24 31 24 31 40 31 38 45 40 48 56 62
Screw speed rpm 300 250 270 230 210 210 210 200
Clamping Unit
Clamping force KN 1000 1300 1600 2000 2500 3000 3500
Moving mould-plate stroke mm 350 410 470 540 580 650 750
Max.Mould height mm 400 460 550 600 650 700 750
Min.Mould height mm 150 150 180 200 250 250 250
Space between tie-bars mm 360x360 420x420 470x470 530x530 580x580 630x630 720x720
Hydraulic ejector force KN 49 49 67 67 87 87 125
Hydraulic ejector stroke mm 120 120 150 150 160 160 180
Ejector number n 5 5 5 9 13 13 13
Other
Pump pressure MPa 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5
Driving power KW 15 15 22 30 30 37 45 55
Heating capacity KW 7 10.5 10.95 12.95 13.55 16.83 18.15 23
Machine dimension m 4.16x1.18x1.78 4.23x1.18x1.81 4.53x1.25x1.95 5.30x1.34x2.10 5.70x1.47x2.17 6.04x1.60x2.28 7.14x1.75x2.4 7.4x1.9x2.3
Machine weight t 3.1 3.3 4 5.1 7.4 9 10 14,5
Oil tank capacity L 235 235 253 270 280 300 400 680

1.
The optimized designed 5-point toggle clamping structure has a central clamping effect and bigger opening stroke, lower axis-pin contact stress, more suitable for deep cavity product molding. It makes the clamping force acts on the mold directly, and avoids the disadvantage of outward toggle structure caused the inclination of mold-plate when making the long stroke and eccentric mold. The moving plate moves faster, more stable, and more controllable, and the machine dry cycle cycle is shorter.
2.
The ultra-high rigidity square plate and tie-bar structure design caters to international mold design standards, improves mold adaptability, reduces principal stress, the plate force is more uniform, extends the life of tie-bar, and more effectively fit and protect the mold.
3.
The front connecting rod interprated desigh and the toggle non-chuck structure improves the life of the machine and reduces the maintenance cost. The ejection stroke is longer, the ejection part is equipped with a forced retracting device as standard, and the ejection position can be adjusted freely.

4.
Side-mounted new mechanical safety structure, more convenient to operate and safer to use.
Боковая новая механическая конструкция безопасности, более удобная в эксплуатации и более безопасная в использовании
