Diamond Multi-Wire Saw Cutting Machine for Magnets Optical Glass Processing Tool

Product Description

Equipment use: This sophisticated model is expertly engineered to fulfill the high cutting efficiency demands of our esteemed customers. The machine boasts a roller length of 690mm, and its table dimensions are meticulously crafted at 170/145mm*690mm*160mm*2 version. It is perfectly designed for precision cutting of products within a thickness range of 0.3mm to 65mm.

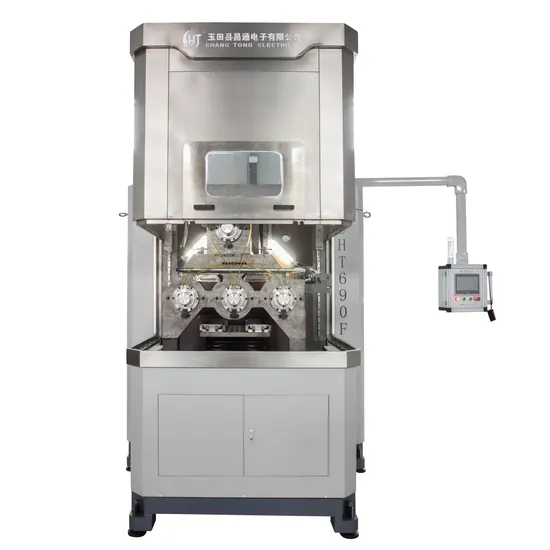

Introducing the CHTXQ-690F Double Plate Multi-Wire Cutting Machine: Unveiling Cutting-Edge Product Features
1. Experience unparalleled precision with four motors independently powering each roller, transforming them into efficient drive shafts. This innovation significantly reduces wear on the steel line and prolongs roller lifespan. The roller bracket's mounting hole is expertly molded at our processing center, ensuring impeccable coaxial spindle alignment.
2. Elevate your cutting experience with the option to equip our machine with an intuitive LED display, offering a clear, easy-to-understand presentation of cutting data.
3. Benefit from the ergonomic design that allows materials to be loaded from below, facilitating effortless loading and unloading. This innovative approach ensures a seamless cutting process.
4. Choose between our high-speed and standard models. The high-speed variant guarantees faster processing, superior line speed, and enhanced cutting efficiency. It also allows for the use of finer diamond lines on identical materials, optimizing your cutting operations.
5. Achieve versatile cutting capabilities with our advanced transverse movement feature. The table's back-and-forth maneuverability allows for precision tile slicing and single-line cutting functionalities.
6. Maximize productivity with an expansive loading area, measuring 170/145mm*690mm*160mm*2 version, designed to significantly boost cutting efficiency.
7. Precision-engineered with spindle accuracy of ≤0.01mm, our patented structure dust technology (Patent No. ZL201320681902.7) ensures stable operation and easy disassembly for maintenance ease.
8. Enjoy user-friendly operation with automatic shield lifting and a fully expandable workbench, allowing for smooth material and roll handling.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

Introducing our cutting-edge double-station multi-wire cutting machine. Equipped with diamond wire technology, this machine processes two plate materials simultaneously. With a roller length of 690mm and a maximum cutting area of 220mm*690mm*160mm*2 version, it features a rotary tool holder for versatile cutting. Capable of achieving single and multi-line cutting, this powerhouse tackles hard, brittle materials with ease, offering a cutting blade thickness range from 0.5mm to 65mm.
Discover our multi-line cutting machine, designed for excellence with diamond line processing. This model boasts a roller length of 570mm and a maximum cutting area of 220mm*570mm*160mm, complemented by a rotary tool holder for precision cutting. Perfect for slicing products from 0.3mm to 65mm thick, it excels in processing hard, brittle materials with efficiency.
Explore our compact multi-line cutting machine, available in single and double station models. Ideal for small batch straight sheet processing, it offers effortless product specification changes. With a cutting sheet thickness range of 0.5mm to 30mm, this versatile machine achieves both single and multi-line cutting, efficiently handling hard, brittle materials.

> Experience Stable Wire Web Control
The rollers and wire spools feature a cone-positioned structure with exceptional accuracy and rigidity, effectively minimizing wire web shaking for impeccable precision.
> Discover Our Optimized Pulley System
A carefully designed 8-pulley system reduces diamond wire torsion, minimizes tension fluctuations, and significantly lowers the wire breakage rate for seamless operations.
> Enjoy Easy Wire Winding
Our wire pay-off wheel employs the standard universal spool (PV600 reinforced I-wheel), eliminating the need for rewinding and simplifying wire management.
> Prioritize Safety Guarantee
Experience peace of mind with our main operation door, which raises and lowers electrically, equipped with a safety device to ensure secure operation.
> Benefit from Our Wire Break Memory System
> Simplify Operations with Easy Accessibility
Our cutting room's three-sided open design facilitates easier operation and maintenance, enhancing user convenience and efficiency.
