Paper Tube Winding Machine Paper Core Making Machine

Product Description

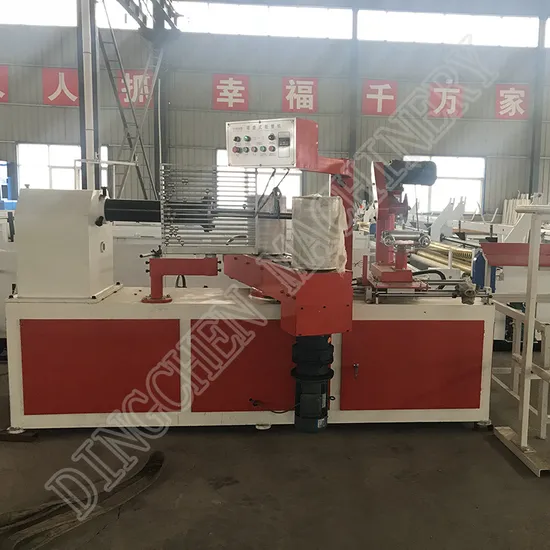

Easy Control Spiral Paper Tube Core Winding Making Machinery for Toilet Paper Roll

Function :
This Easy Control Spiral Paper Tube Core Winding Making Machinery for Toilet Paper can make the paper core with the material of slitted small kraft paper roll, this machine can coat glue on paper and rotate it into paper core. It is maily used in toilet paper tube.
Technical Parameters:

Paper core making machine
Paper core diameter	Φ20-150mm(3-16ply)
Paper core thickness	0.5-8mm
Working speed	3-20m/min
Speed control	Frequency converter
Control	PLC
Power	5.5kw
Cutting	Single blade automatic cutting
Dimension	3200x2000x1950mm
Weight	2800kg

Related Product : Kraft Paper Rewinder & Slitter:
Function: The slitter is used to cut kraft paper jumbo roll into customized size within certain scope, the width of product can be adjusted based on clients' requirement. The kraft paper rolls after slitting is used as raw material for paper core or paper tube.
Technical Parameters of kraft paper rewinder & slitter:

Model	1600A
Slitting speed	200m/min
Slitting ability	35g-600g/m2
Max diameter of raw paper roll	1300mm
Max width of raw paper roll	1700mm
Slitting width	20mm-1700mm(upper and botton
	knife can be adjusted between
	20mm-1700mm)
Max winding diameter	700mm
Main power	3kw
Paper feeding mode	automatic
Quantity of slitting knife	21
Number of operator	1 people
Raw paper correction	before and after, left and right
Speed control	Electromagnetic speed adjusting

Company Information Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,
Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.
