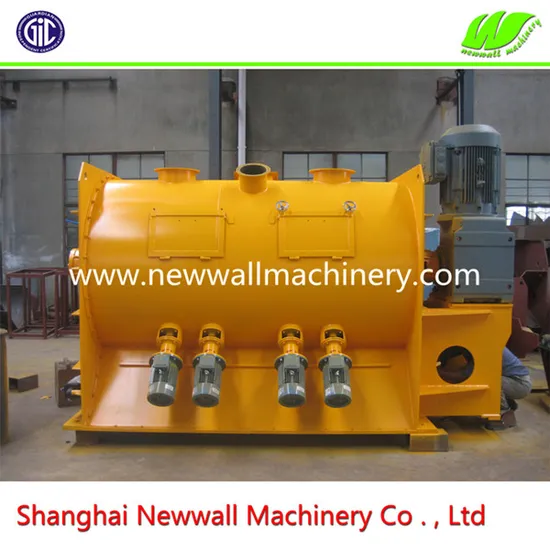

3m3 Dry Mortar Plough Mixer for Dry Mortar Mixing Plant

Product Description

Plough mixer
General description:
The plough mixer consists of transmission mechanism, horizontal drum, colter and fly cutter. The material flow forwards in axial direction along the drum shell by the force from the colter. The materials will be thrown to all directions by high speed rotating fly cutter when pass by it, achieve uniform mixing in the shorter time.
Application range:
It is widely used in construction material, chemicals, medicine, agricultural medicine, food, feed and feed additives, dyes, paints, plastics and other industries, such as solid - solid (powder and powder), mixed solid-liquid (add a small amount of powder in liquid) and wet granulation, drying and composite technology. It is especially suitable for the mixture of viscous or rubbery additives.
Character:
1. Short mixing time, can mix the materials that are big difference in granularity and density.
2. work under sealed condition, run stably, dust concentration is low, no pollution to the environment.
3. Can add spraying device, can separate and mix the lump materials.
4. It has the best performance of separating the fibers.
Technical parameter:

Model	Full volume (m3)	Load coefficient	Main motor power (kw)	Flying blade motor (kw)	Rated speed (r/min)
LDH-0.5	0.5	0.4~0.6	7.5	4×2	85
LDH-1.0	1.0	0.4~0.6	15	4×3	85
LDH-2.0	2.0	0.4~0.6	22	4×3	68
LDH-4.0	4.0	0.4~0.6	37	4×4	57
LDH-6.0	6.0	0.4~0.6	55	4×4	57
LDH-8.0	8.0	0.4~0.6	75	4×4	42
LDH-10.0	10.0	0.4~0.6	90	5.5×5	42
