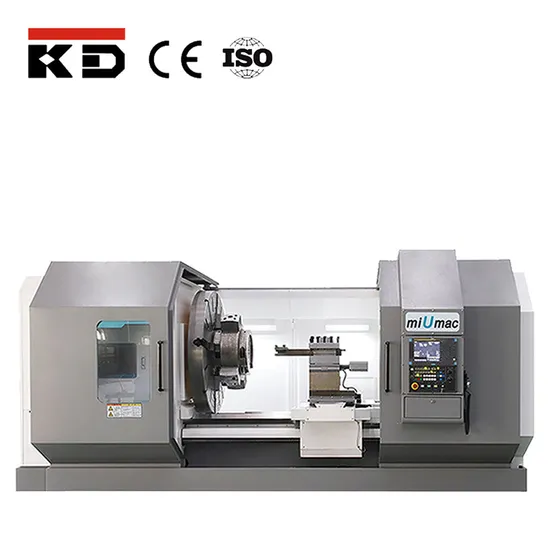

Heavy Duty Flat Bed CNC Lathe Ck61140/2000
| US$50,000.00-150,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
CK61140/2000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
1400mm
Spindle Bore
130mm
Spindle Speed
2.5-250r/Min
Width of Bed
970mm
Main Motor
22kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100 Sets/ Year
Product Description
FEATURES AT A GLANCEPRODUCT SPECIFICATIONS
ITEMS | CK61140 | CK61160 |
Max. swing over bed | Φ 1400 mm | Φ 1600 mm |
Max. swing over carriage | Φ 990 mm | Φ 1190 mm |
Width of bed | 970 mm | |
Maximum length of workpiece | 1.5 /2 /3/4 /5/6/8/10m | |
Max. turning length | 1.3 /1.8 /2.8 /3.8/4.8/5.8/7.8/9.8 m | |
Max. weight between centers | 6000Kg | |
Spindle nose | A2-15 | |
Spindle bore | Φ 130 mm | |
Cone hole diameter and taper of spindle hole | Metric Φ 140 1: 20 | |
Steps of spindle speed(Manual) | 24 | |
Range of spindle spec | 2.5~250 r/min | |
Rapid feed for Z axis | 8m/min | |
Rapid feed for X axis | 5 m/min | |
Max. travel of Axis X | 820 mm | 920 mm |
Max. Input | 0.001 mm | |
Tool post stations | 4station | |
Tool cross section | 50× 50mm | |
External diameter of tailstock sleeve | Φ 160mm | |
Taper of bore of tailstock sleeve | Metric 80 | |
Max. traverse of tailstock sleeve | 300mm | |
Spindle motor power | 22KW | |
Power of cooling pump | 370W | |
3m Overall dimensions(L× W× H) | 6200× 2280× 2130 mm | 6200× 2280× 2300 mm |
Net weight(3m) | 12700 | 13500 |
