Plastic Barrel Blow Molding Machine/ Automatic Plastic Extruder Machine

Product Description

Plastic Barrel Blow Molding Machine/ Automatic Plastic Extruder Machine
Product Description

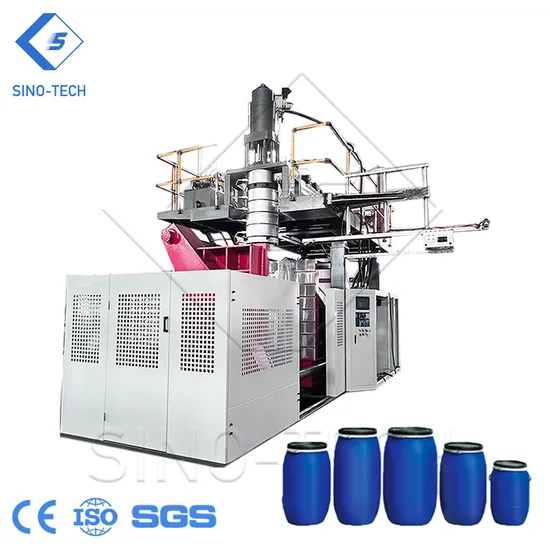

STB-160F Accumulator Extrusion Blow Molding Machine
Machine Features 1. Special design for 120L, 160L PE/PP/ABS... Barrels 2. Die head design with easy to change the material and color.
3. Latest mold changing system, much faster and easier.
4. Optimized hydraulic system, proportional pressure control
5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds
6. Simple structure in linear type, easy in installation and maintenance.
7. Servo system
8. With robot arm take out the finished product
9. One to three multi-layers choose 10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving
11. Full Servo system control.
12. Simple structure in linear type, easy in installation and maintenance.
13. With a robot arm take out the finished product.
14. Single die-head and Single station.
Product Parameters

Max. Product Volume(L)	160
Station	Single
Dry cycle (PC/H)	300
Screw Diameter (MM)	100
Screw L/D Ratio (L/D)	28
Screw Drive Power (KW)	75
Screw Heating Power(KW)	24
No.of heating zone(Srew)	5
Output of HDPE(kg/h)	180~230
Hydraulic pump driving power (KW)	32.7
Clamping force(KN)	1200
Platen distance (MM)	500~1900
Max. Size of Mold(W*H)(mm)	1200*1900
Capacity of Accumulator head(L)	18
Max.Die Diameter (mm)	510
Die heating power(KW)	35.2
No.of heating zone (ZONE)	6
Blowing pressure(Mpa)	0.8
Air consumption(m³/MIN)	2
Cooling water pressure(Mpa)	0.4
water consumption	300
Size of machine(L*W*H)(m)	5.93*2.1*4.5
Weight of machine(TON)	22

Detailed Photos
Company Profile
Our Advantages
Packaging & Shipping
FAQ
Q: Can we visit your factory?Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai PudongInternational Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online byvideo.Q: How can we get the exact price of plastic machine?Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models withquotation.Q: Do you provide any spare parts with machine?Yes, we offer all necessary spare parts before shipment.(contact us for packing list )Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technicalsupport or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cyclewill vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customersproducts to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train thecustomer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we cansource the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
