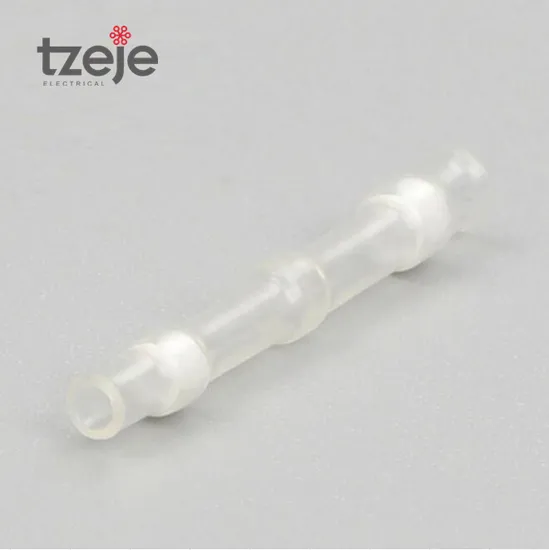

Waterproof Heat Shrink Solderless Wire Connector

Product Description

About Products
1. Products Name: waterproof solder sleeves wire splices
2. Body material: solder sleeve
3. Insulating Tube: heat shrink
4. Packing: 100pcs/bag, inner box and export carton
5. Color: White/Red/Blue/Yellow

Specifications

Item No.	A.W.G	Lead Section mm²	copper mm		Heat Shrink			color	Description
			A(min)	L(min)	B(min)	B and C(min)	C(min)
ZJ-11	26-24	0.25-0.34	1.7	26	1.0	1.7	0.76	White	Heat shirnkable tube Low temperature solder sleeve Waterproof hot melt adhesive
ZJ-21	22-18	0.5-1.0	2.7	40	1.4	2.7	1.2	Red
ZJ-31	16-14	1.5-2.5	4.5	40	2.3	4.5	2.0	Blue
ZJ-41	12-10	4.0-6.0	6.0	40	3.7	6.0	3.4	Yellow

About Factory Wenzhou Zhijie Electric Co., Ltd. is a professional manufacturer. Specialized in designing, development, production and marketing of various terminal studs, cold press terminals, connectors, spiral type street crimping caps and cable accessories. The company refer to Europeam and American technical requirements and quality development, the products have passed CE, ROHS and SGS.
The company boasts of advanced automation equipment and chek out test sets, high quality management team and employees of grass roots, all of these enable the company to establish good image of brand.
Abiding by the quality policy of promoting production with qulaity, seeking development with technologu, winning benefit with management, and attracting customers with credit standing, we sincerely hope to cooperate with friends from all social sectors at home and abroad, made development and creat brilliance together.
