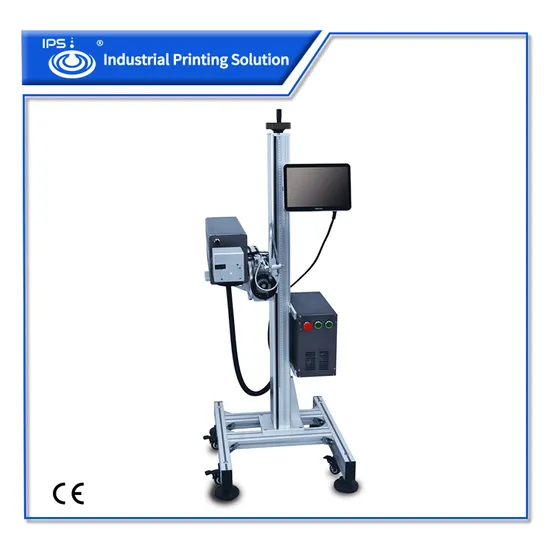

High Speed Digital Motor 10.4 Inch Touch Screen Logo Printing Machine
Basic Info.
Model NO.
IPS-LC30F
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
CO2 Laser
Laser Classification
Solid Laser
Type
CO2 Laser Marking Machine
Marking Method
Scanning Marking
Part No
IPS-LC30f
Laser Power
30W
Wavelength
10.64 Micron /9.3 Micron
Overrall Power
Around 300 Watt
Power Supply
220V/50Hz/5A/1p
Scanning Galvanometer
High Speed Digital Motor
Focus System
Two Red Light with Outline Indication
Repetition Accuracy
+-0.002 mm
Min Linewidth
0.01mm
Linear Speed
Around 8000 mm/S
Marking Size
70*70mm/110*110mm/175*175mm/300*300mm
Weight
75kg
Operation System
Android
User Interface
0.4 Inch Touch Screen
Language
English Russian Thailand Korea Arabic Portuguese
Transport Package
Wood Carton
Specification
57*66*155CM
Trademark
IPS
Origin
China
HS Code
8456110090
Production Capacity
1000/ Year
Product Description
High Speed 30W Glass Date Fly CO2 Laser Marking Engraving Machine for Transparent Pet Water Bottle with CESupport customized staring screen and logo, multiple language
CO2 Laser marking machine is carbon dioxide laser marking. The active laser medium is a gas discharge which is air-cooled (water-cooled in higher power applications). The filling gas within the discharge tube consists of carbon dioxide and other auxiliary gas. Electron impact excites vibrational of molecule and produce a beam of infrared light with the principal wavelength bands centering on 10.6 micrometers.
Advantages of CO2 laser marking machine
1. Small size and easy to move. In a CO2 laser marking machine, almost all the accessories can be put in one cabinet. There are
even portable CO2 laser marking machine if the power is small (10Watt). It is very easy to carry.
2. High speed, high efficient, high precision, stable performance and no maintenance.
3. Easy operation. Those who can operate a computer can learn it easily.
4. Wide applications, can be used on most material.
5. Save cost, no need for consumables
Applications:
CO2 laser marking machine can mark on most non-metal material, such as bamboo, wood, paper, ABS/PVC epoxy resin, acrylic, leather, glass, ceramic, rubber and so on. It is widely used in pharmaceutical packaging, food packaging, beverage packaging, plastic, textile, leather, wood, handicrafts, electronic components, communications, watches, glasses, printing and other industries.
SPECIFICATIONS OF IPS-LC30W
| Model | IPS-LC30W F |
| Laser Power | More than 30 watt |
| Laser Wavelength | 10.64μm/9.3μm |
| Linear Speed | around 8000 mm/ s or more |
| Marking Size | 75*75mm, 150*150mm, 200*200mm, 300*300mm |
| Min Linewidth | 0.01 mm |
| Min Font Height | 0.01 mm |
| Repetition Accuracy | +-0.002 mm |
| Overall Power | Less than 500 W |
| Power Supply | 220V/50-60HZ/5A/1P |
| Laser Gun Brand | Synrad / CR/ DAWEI |
| Laser Gun Type | Carbon Dioxide Laser |
| Scanning System | Digital Scanning Galvanometer with high seep motor |
| Focus system | Two Red Light with accurate position |
| Cooling system | Built-in Air Cooling |
| Flying System | 10.4 inch professional fly marking system based on Android |
| Weight | Around 75KG |
| Overall Dimension | 57*66*155 CM |
| File Format Support | Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file. Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases. |
| Language support | English,Russian, Thailand, Korea ,Arabic ,Portuguese, etc |
