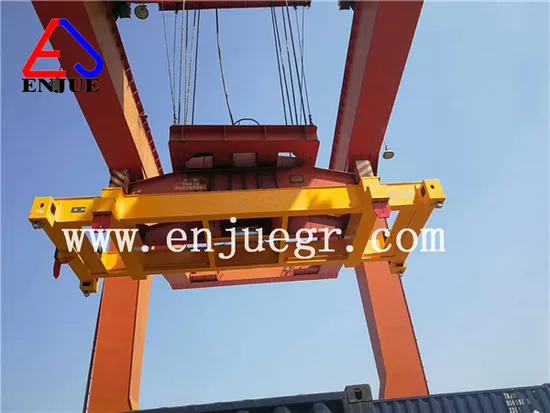

Shanghai Enjue Semi-Automatic Mechanical 20 Feet 40 Feet Lifting Container Spreader with RS BV CCS Cert.

Product Description

shanghai ENJUE Semi-Automatic Mechanical 20 Feet 40 Feet Lifting Container Spreader
Technical Specification
Scope of supply
HS20 /HS40 Enjue..,
One unit 20'/40' Enjue automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.

Item	20'	40'
Max. SWL	≈ 35 t	≈40 t
Dead Weight	≈1.8t	≈3.1t

. Overall Dimensions

Item	20'	40'
(): Distance between lock centers(length)	≈ 5853 mm	≈11985 mm
(): Distance between lock centers(width)	≈ 2260 mm	≈2260 mm
: Overall Length	≈ 6058 mm	≈12188 mm
: Overall Width	≈ 2610 mm	≈2610 mm
: Frame Height	≈ 636 mm	≈731 mm

. Technical Parameter

Item	20'	40'
Dia. of pressed wire rope slings	32 mm	36 mm
Length of pressed wire rope slings	3.5m per piece (4 pieces for each set)	8.5m per piece (4 pieces for each set)
Steel Frame	Material Q345B	Material Q345B
ISO Standard Fixed Twist Lock	Material 42CrMo	Material 42CrMo
Twist Lock Device	Finish the Twist locks action via semi-automatic Elastic lasso	Finish the Twist locks action via semi-automatic Elastic lasso

. Surface Treatment & Painting
1.Flame dirt-remover, and then shot blasting.
2. 40µm,,80µm/40µm.
Primer coating (Epoxy resin paint) app. 40µm
Middle (Epoxy resin paint) app. 80µm
Top paint (Polyurethane paint) app. 40µm.

(),The top coat paint color is yellow. There is scutcheon with the main specifications, manufacture date and exfactory number.

. Technical Documents
When delivering, the seller provide drawings of the spreader& quick-wear parts
()Operation Manual
Certificate of Quality

. Parts Introduction
1. Lever For Operating Rope
2. 20'&40'Heavy Duty Container Spreaders 20'&40'
3. Semi-Automatic or Manual Operation
4. Extra Large Lifting Rings 180*340mm 180*340mm
5. Actuation Spring
6. Spring Support
7. Operating Handle
8. Twist lock
9. Actuation Gear For Automatic Operation

. Spreader Characteristics
1. The spreader adopts box-type end beam, so the structure is stable. The twist lock is leak proof structure, which protects the parts from rusting
2. ,Four hoist points structure, which lighten the dead weight of the spreader, and enhance the stability of the spreader.HS20'/ HS40' spreader adopt Heavy hammer type semi-automatic twist lock, manpower to turn the pin is no need any more, which highly improve the work efficiency and safety on spot

. Safety Test
1. 150%.Each spreader should be carried out 150% static load test before delivering.
2. .All the lifting eyes should be carried out safety test.
3. 25.Each twist lock should be carried out 25t safety test.

.Safety Protection
1. When the spreader lifts container, the load should not exceed the max. SWL.
2. ,When using the spreader, using design function only.
3. .Person shouldn't stand under the lifting spreader.
,After operation, please check if there are damages on the spreader, if fasteners loose. If so, please repair timely.
