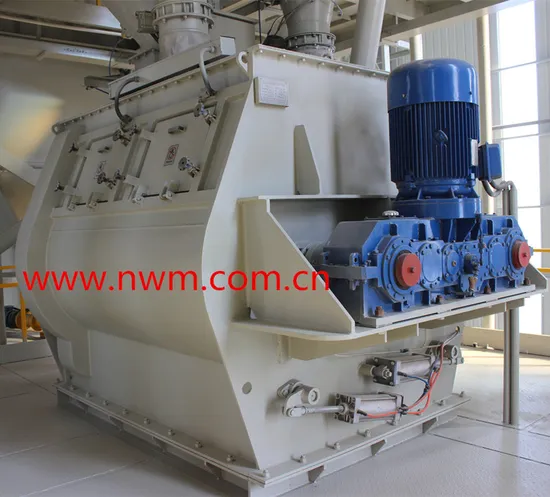

4m3 Dual Shaft Paddle Mixer for Dry Mortar Mixing Plant
| US$25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NW-DSPM-4
Application Area
Engineering & Construction
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Drum
Power
45kw
Working
Convection Mixer
Volume
6m3
Load Factor
0.4~0.6
Sealing
Pneumatic Sealing
Type
Dry Mortar Production
Method
Mixing
Processing
Dose and Mix
Product
Dry Mortar
Automation
Automatic
Mixer Type
Powder Mixer
Stirring Type
Forced
Layout Type
Horizontal
Operating type
Cycle Operating
Warranty
12 Months
Transport Package
Wood Box
Specification
CE
Trademark
NW
Origin
Jiangsu
HS Code
8474900000
Production Capacity
100 Sets Per Year
Product Description
Work principle
Agravic dual shaft mixer works in the principle of convection mixing, the twin shaft
paddles are installed inside the drum and rotate in the opposite direction each
other.
Each paddle is designed based on scientific calculation and has reasonable space
and angle value. When the materials are thrown to the air flowing layer inside the
drum by the rotating force from the paddles, the material will be weightless
instantaneously and fall into the mutual space, the middle layer will form a
fluidized weightless area and vortex, the bottom form a flowing layer, as a result,
the materials are taken 3D compound motions to mix the materials evenly.
The machine has been widely applied in drying and mixing materials in these
industries: chemical, metallurgy, building, coating, resin, pesticide, feed and
powder.
Character:
1. different types of discharge method can be chosen, manual, electric and pneumatic,
2. install the flying cutter which can diffuse the fiber rapidly.
3. air-phase equilibrium apparatus make the mixing more uniformly.
4. the assembled paddle structure decrease the maintenance cost significantly.
5. big opening design reduce the dead end, can discharge cleaner and faster.
6. it can do solid-solid(powder-powder) mixing, solid-liquid(powder-liquid) mixing and drying.
7.Mixing speed is fast, normal the powder mixing just need 2~3 minutes.
8.It work under sealed condition, reliable operation, easy maintenance.
Technical parameters:
| Model | Full volume (m3) | Load coefficient | Power (kw) | Rated speed (r/min) |
| WZ-0.5 | 0.5 | 0.4~0.6 | 5.5 | 58 |
| WZ-1.0 | 1.0 | 0.4~0.6 | 11 | 51 |
| WZ-2.0 | 2.0 | 0.4~0.6 | 18.5 | 43 |
| WZ-3.0 | 3.0 | 0.4~0.6 | 22 | 38 |
| WZ-4.0 | 4.0 | 0.4~0.6 | 37 | 38 |
| WZ-6.0 | 6.0 | 0.4~0.6 | 45 | 34 |
| WZ-8.0 | 8.0 | 0.4~0.6 | 55 | 29 |
| WZ-10.0 | 10.0 | 0.4~0.6 | 75 | 29 |
