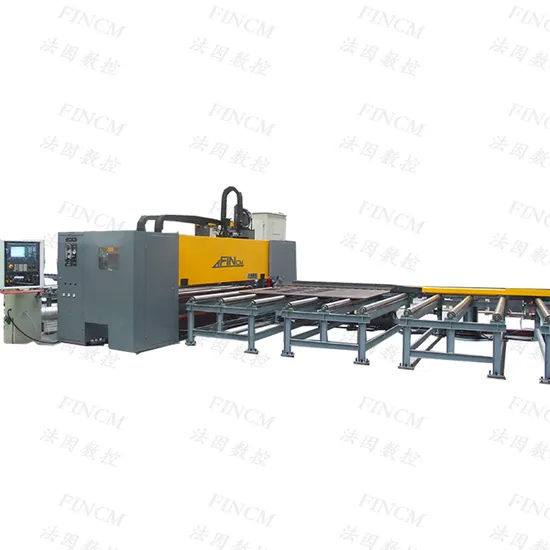

BHD500E/3 FINCM BHD Series High Speed CNC Beam Drilling Machine

Product Description

Product description:BHD500E/3 Product Description

Product Parameters

H-beam	Section height	100~500mm
	Flange width	75~400mm
U-shaped steel	Section height	100~500mm
	Flange width	75~200mm
Maximum length of workpiece		12000mm
Maximum thickness of workpiece		20mm
Drilling power box	Quantity	3
	Maximum borehole diameter	Upper unit: cemented carbide φ 30mm / high speed steel φ 35mm Left and right units: φ 30mm
	Spindle taper hole	BT40
	Spindle motor power	Left,Right 7.5KW Up 11KW
	Spindle speed (stepless speed regulation)	20~2000r/min
CNC axis	Quantity	7
	Servo motor power of fixed side, moving side and middle side feed shaft	3×2kW
	Fixed side, moving side, middle side, moving side positioning axis servo motor power	3×1.5kW
	Moving speed of three positioning CNC axes	0~10m/min
	Moving speed of three feed CNC axes	0~5m/min
	Up and down travel of fixed side and mobile side power head	20-380mm
	Left and right travel of middle side power head	30-470mm
	Width detection stroke	400mm
	Web height detection stroke	190mm
Feeding trolley	Power of servo motor of feeding trolley	5kW
	Maximum feeding speed	30m/min
	Maximum feeding weight	2.5t
Cooling system	Compressed air pressure required	0.8Mpa
	Number of nozzles	3
	Cooling mode	Internal cooling + external cooling
Accuracy	Error of adjacent hole spacing in hole group	±0.4mm
	Accuracy error of 10m feeding	±1.0
Hydraulic system	Motor power of hydraulic station	4kW
	System pressure	6MPa
electrical system		PLC+ sockets
Plasma Cutting Unit	Number of cutting heads	1
	Cutting Type	Plasma
	Plasma specification	Max 105
	Rated cutting current	105A
	Use plasma gas	compressed air
	Servo motor power	0.2 kw
	Maximum speed	5 m/ min
	Travel	400mm
