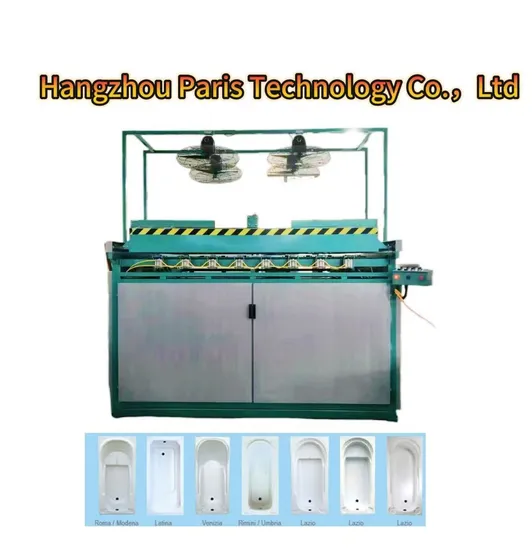

Acrylic Bathtub Forming Making Thermoforming Machine Bathtub Vacuum Forming Machine

Product Description

Product Description

Please contact wechat/whatsapp for more detail

automatic acrylic abs bathtub and shower tray vacuum forming machine,easy to operate,one hour can make about 10-20 formings
We are both the vacuum forming machines and acrylic/ABS bathtubs and shower trays manufacturer
the bathtub making line need the devices as follows,
1.acrylic bathtub vacuum forming machine
2.air and vacuum system:
vacuum pump(making vacuum),vacuum tank(to storage the vacuum),air compressor(to make the high pressure air),air tank(to storage the air pressure)
3.edge trimming machine(to cutting the bathtub and shower tray edges)
4.resin and stone powder mixer
5.fiber glass and resin spray gun(also can be done manually)
6.bathtub form designs and bathtub moulds
Forming Machine instructions
Mod:DGW-SP-1520 fast heating single workstation automatic forming machine, this machine use for ABS, acrylic bathtubs and wash basins automatic forming, it is compact and reasonable structure, easy to operate, forming high precision.
1.Heating elements: electric heating evenly
2.Power consumption 42KW(all the heaters are turned on, if the products are small, only open the central heaters)
3.Use 380V three phase and N wire electricity power supply, all four wire use 16 square copper wire
4.The temperature setting left,middle,right,automatic control
5.Up heating cover furnace pheumatic moving
6.Vacuum forming largest area:1500x2000mm
7.Electric mould adjustment and pneumatic lift mould sets of pressure 2000KG
8.Electric adjust distance 550mm,pneumatic lifting distance 350mm
9.Manual vacuum aspiration and exhaust systems
10.Cooling fan
11.Manual operation control
12.Weight:1800kgs
13.Dimention:4500x3200mm
We are also the acrylic/ABS bathtubs and shower trays manufacturer,if you buy the bathtub making line from us,we will help you to set up the whole bathtub making line in your factory,or you can send your technicians to our bathtub making factory to learn all the bathtub making skills.
The bathtub making skills,such as follows,
1.how to connect the moulds to the forming machines
2.how to connect the vacuum pipe from the mould to the vacuum system
3.how to connect the air pipe to the air compressor and the air tank
4.how to spray the resin and fiber glass
5.what is the percentage of each chemicals(blue chemical,white chemical) and resin and stone(CaCO3:calcium carbonate) powder in the conditions of different weather
6.what is the time for the every step of resin spray
7.how to control the oven heating,how to know the acrylic board is hot and soft enough
8.how to make the holes for the bathtub drain
9.how to trim the bathtub edges
10.how to control the heaters of the oven
11.how to fit the stainless steel frame to the bathtubs and shower trays
12.how to adjust the forming area,so that can save the acrylic sheet,and can control the heaters
13.what is the time for the resin and chemicals mixing and spray
14.how to pack the bathtubs and shower trays
15.etc(other skills)
