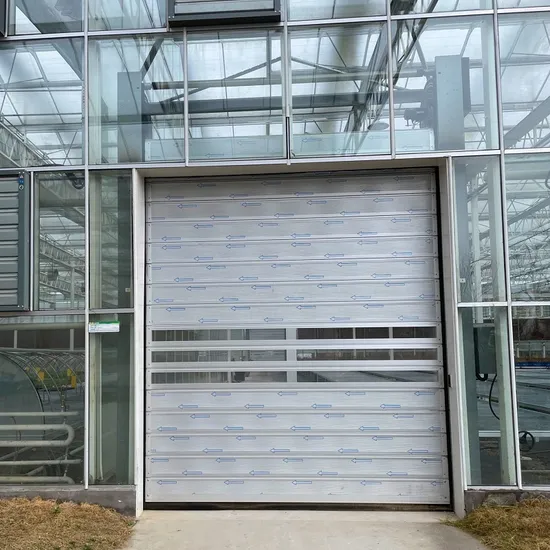

Rapid Rolling Security Insulated Roll up Industrial High Speed Spiral Doors

Product Description

Why more and more factories choose SEPPES industrial doors?
1. An industrial Door Brand Exported to Over 50 Countries
2. Serving Over 3600 Clients Worldwide
3. Holder of Multiple Authoritative Certifications, Including CE, SGS, UL
4. Supplier Partner to Fortune 500 Companies
5. Advanced Servo Intelligent Control Systems for Professional NeedsOverviewHigh Speed Spiral Door
High speed spiral doors are suitable for installation in industrial buildings, factories, warehouses, workshops, garages and other industrial equipment exits. The new arc-shaped turbine and tensioning torque balance technology can ensure a more stable operation of the door body, and one person can easily open and close the operation.
Installation Site
SEPPES Door Advantage1.Panel:0.7mm thick double-layer aluminum alloy door panel, filled with high-density polyurethane foam in the middle, the total thickness of the door panel is 40mm with a volume density of 250kg per cubic meter, and the heat insulation structure is designed.
2.Sealing:The four-fold sealing structure technology ensures the airtightness and isolation effect inside and outside the door, and the airtightness is 8.68m³/(xh).
3.Balance:The four-fold sealing structure technology ensures the airtightness and isolation effect inside and outside the door, and the airtightness is 8.68m³/(xh).
4.Safety:The four-fold sealing structure technology ensures the airtightness and isolation effect inside and outside the door, and the airtightness is 8.68m³/(xh).
Various colors available
Technical parameter

Features	Suitable for outdoor doors that are frequently opened and closed, with functions such as fast speed, strong wind resistance, and good thermal insulation performance
Door curtain material	0.7mm aluminum alloy door panel, filled with polyurethane foam for heat preservation inside, and the thickness of the door panel is 42mm
Door frame material	2.5mm galvanized steel paint frame
Control system	Standard microcomputer control system\Open, Close, Stop buttons\Switch man-machine English interface\LCD display, fault code prompt
Security system	Photoelectric protection (standard configuration)\Wireless safety bottom edge protection (standard)\Grating protection (optional)
Drive system	Servo motor, reducer
Maximum speed	2.0m/s
Wind resistance level	11 winds (national standard)
Emergency door opening	Support
Motor position	Default right
Structure of Door	five type ,Elliptical helical structure ,complex called Elliptical helical structure,L shape structure. vertical structure and horizontal structure.

Details of products1.Double-layer aluminum alloy door
Door panel filled with polyurethane foam
Total thickness 40mm
Rubber strip seal at the joint of the door panel
2.Wear-resistant pulley
3.Servo drive motor
4.Transparent small window
5.row of windows
6.Slient structure
7.Wireless safety anti-pinch structure
8.Power failure manual opening device
High speed spiral door details
1.Door panel 2.Transparent window 3.Track 4.Servo drive motor 5.Control box
All measurements are made indoors and each value must be measured at at least three points:H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 900mm
b1/ b2 is the left/right lateral distance of at least 350 mm (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room.
When measuring h, b1, b2 and L, take the smallest value as the final size.Project cases
About usSEPPES Door Industry (Suzhou) Co., Ltd. is a high-tech company focusing on the development, design and manufacturing of industrial door technology, headquartered in Suzhou, China. We manufacture complete customized entrance door system solutions for industrial customers. Our main products include high speed doors, automatic roller shutter doors, sectional doors, etc. All products comply with European industry standards and have obtained EU CE, international SGS, and ISO9001 quality management systems. Certification.
With professional products and brand reputation, SEPPES has become a cooperative supplier of more than 60 Fortune 500 companies. Products are exported to more than 50 countries and regions including the European Union, Australia, the United States, Canada, France, Japan, Dubai, and Russia, and have provided products and technical solutions as well as multiple product safety guarantees for more than 3,200 corporate customers!
