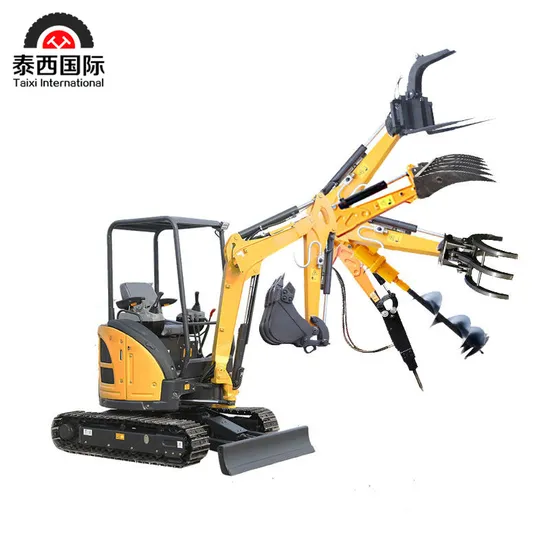

Wholesale Small Digger Machinery 1.2 Ton Mini Excavator with Cheap Price CE/EPA

Product Description

Product Features: 1. The mini excavator is equipped with top brand engine such as Yanmar or Kubota, satisfying the EURO5 and EPA Tier4 emission standard. 2. The hydraulic system adopts the load-sensitive mechanism, making each move operated smoothly with help of the branded pump. 3. With many years' manufacturing experience, the engines and hydraulic systems are matched perfectly, so the mini excavator has enjoyed the best efficiency and performance. 4. The whole body adopts the reinforced material, making it stronger from the initial. 5. The scientifically compact design of each model, increasing its reliability while decreasing the possibilities of machine breakdown. 6. Most models are standard with hydraulic control and boom swing functions. So the mini excavators could make more moves easily at the lowest time. Also, it releases hard work of the operators. 7. With retractable undercarriage or chassis, the mini excavator could pass through the narrow space easily. Together with double speed motor, it can walk faster improving all work efficiency. 8. Standard with one backup hydraulic oil pump, so that many tools such as Hammer, Auger, Rake, Thumb, Grapple etc. could be attached to complete various jobs.

Model	TX08	TX09	TX10	TX12
Operating Weight	750KG	760KG	850KG	950KG
Standard Bucket Capacity	0.02m³	0.02m³	0.025m³	0.025m³
Power	7.6kw/7kw	7.6kw/7kw	7.6kw/7kw	7.6kw/7kw
Maximum Digging Radius	2478mm	2500mm	2400mm	2400mm
Maximum Digging Depth	850mm	840mm	1540mm	1650mm
Maximum Digging Height	2500mm	2500mm	2550mm	2550mm
Maximum Unloading Height	1600mm	1780mm	1600mm	1600mm
Engine Brand	KOOP192/192F	KOOP192/192F	KOOP192/192F	KOOP192/192F
Track Ground Length	1100mm	1100mm	1150mm	1250mm
Chassis Width	730mm	730mm	930mm	930mm
Track Width	150mm	150mm	180mm	180mm
Transport Length	2200mm	2200mm	2550mm	2200mm
Full Vehicle Height	1880mm	1880mm	2200mm	2200mm
Radius Of Gyration	1360mm	1100mm	1190mm	1190mm
Model	TX13	TX15	TX17	TX18
Operating Weight	1100KG	1100KG	1150KG	1500KG
Standard Bucket Capacity	0.025m³	0.025m³	0.03m³	0.03m³
Power	7.6kw/7kw	14kw	18kw/10.2kw	18kw/10.2kw
Maximum Digging Radius	3100mm	2400mm	3031mm	3280mm
Maximum Digging Depth	1740mm	1650mm	1884mm	1910mm
Maximum Digging Height	2550mm	2550mm	2550mm	2740mm
Maximum Unloading Height	1710mm	1600mm	1900mm	1900mm
Engine Brand	KOOP192/192F KUBOTA D722(10.2kw)	KOOP292	LAIDONG 385 KUBOTA D722	LAIDONG 385 KUBOTA D722
Track Ground Length	1300mm	1250mm	1250mm	1300mm
Chassis Width	1100mm	1000mm	1100mm	1160mm
Track Width	180mm	180mm	180mm	230mm
Transport Length	2400mm	2450mm	2170mm	2200mm
Full Vehicle Height	2200mm	2200mm	2170mm	2200mm
Radius Of Gyration	1635mm	1550mm	1550mm	1635mm

Note: Gasoline engines usually use the brand of "BRIGGS & STRATTONS".
If you need 1-3 units would be put in wooden box, more than 4 units will loading by container. We will ship your goods when we received the full payment.
1. Why choose us?
As a manufacturer, Taixi Machinery is committed to offer not only crawler excavators with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.

2. What is the product range of our factory?
Taixi Machinery is a large-scale machinery manufacturing enterprise primarily specializes in supplying excavator, loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.

3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.

4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.

5.How about our delivery time?
Usually it will take 25 to 35 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.

6. Can we provide OEM service?
Taixi Machinery can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
