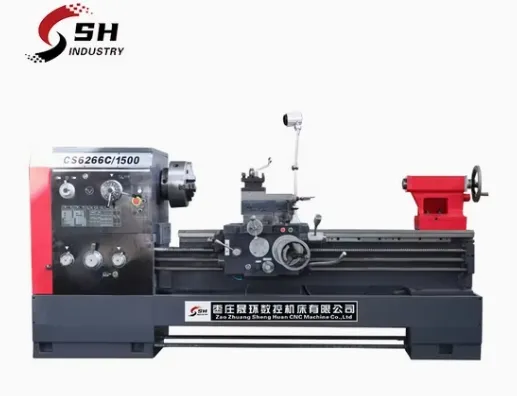

CS6266 Conventional Manual Lathe Machinery (Metal Lathe Machine)
| US$8,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS6266
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
Used
Product Name
CS6266 Conventional Manual Lathe Machinery (Metal
Max Swing Over Bed
660
Max Swing Over Carriage
420
Max .Swing in Gap
870
Effective Gap Length
230
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8458190000
Production Capacity
500
Packaging & Delivery
Package Size
280.00cm * 115.00cm * 220.00cm
Package Gross Weight
2500.000kg
Product Description
CS6266 Conventional Manual Lathe Machinery (Metal Lathe Machine)Product Description
SPECIFICATIONS:
| Model | CS6266C |
| Max Swing Over bed | 660mm(26") |
| Max swing over carriage | 420mm(17") |
| Max .Swing in gap | 870mm(34") |
| Max. length of work piece | 1000/1500/2000/3000/4000 |
| Effective gap length | 230mm |
| Bed width | 405mm |
| Spindle bore | 105mm D8/D11 |
| Spindle taper of bore | 113(1;20) |
| Spindle range of speed | 36-1600 mm |
| Spindle number of speeds | 12 steps |
| Threads Metric Pitches | 1-14mm /22 |
| Threads imperial pitches | 28-2 TPI/25 |
| Threads Diameter Pitches | 56-4Dp/24 |
| Threads module pitches | 0.5-7mm/18 |
| Range of feeds longitudinal | 0.063-2.52mm(0.023"-0.0937") |
| Range of feeds cross | 0.027-1.07mm(0.011"-0.0404") |
| External diameter of the Tailstock quill | 75mm |
| Max Traverse of tailstock quill | 150 |
| Quill Taper | NO5.(Morse) |
| Max travel of compound rest | 150 |
| Max. cross slide travel | 360mm |
| Max. size of tool shank(WXH) | 25X25mm |
| Power the main motor | 7.5KW |
| Packing size(LXWXH) | 2800/3300/3700/4700/5700X1150X2200mm |
| Net weight | 2500/2750/3000/3900kgs |
Accessories:
| Standard Accessories | Optional Accessories |
| 3 Jaw chuck | 4-jaw chuck |
| Face plate | Drive plate |
| Reduction Sleeve | Steady rest |
| Centers | Follow Rest |
| Wrenches | Thread Dial |
| Oil gun | Live center |
| operation manual | Quick change tool post |
| Taper copy ruler | |
| 4-position longitudinal automatic trip |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
