5 gallon bucket / bottle washing filling sealing Machine / 20L 19L water production line

Product Description

Product Description

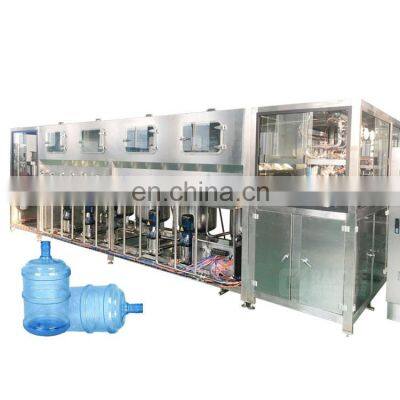

5 gallon Bucket / Bottle Washing Filling Sealing Machine
Product Description
Brief introduction :
QGF-600 5 gallon drinking water filling machine is mainframe for produce 5 gallon barreled water. It consists of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.
Main Machine Features.1. Shape structure adopted concave and convex shape,
perfect appearance also reduces the leakage.
2. The thickness of the stainless steel plate which used for 600bph is 3mm.
3. Tank and the heating pipe in tank are removable which become more clean sanitation.
4. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
5. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Capping Parts.
1. Liquid level difference is controlled in 1cm.
2. Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
Flat Conveyor.
The chain board on conveyor is made with stainless steel. The appearance of foot stand is perfect, and the height can be adjusted.
Cap Sterilization System.
Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
Machine picture:
Main technical data:

Model	QGF-100	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	2	3	4	6	12
Capacity (b/h)	60-100	100-240	250-300	400-450	600-800	800-900	1000-1200
Motor power (kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Weight (KG)	680	800	1500	2100	3000	3500	4500

Details

	De-capping machine: This decapping machine is designed for 3 & 5 gallon bottle in water production line. It's used to pull out the cap of recycling bottle before rinsing.
Automatic outside brushing machine: The machine is used for cleaning barrel outside before filling process. It's used for allround cleaning the bottle, significantly improves cleaning efficiency.
	Automatic up-loader: Automatically push the prepared empty bottle into the filling machine, put the bottle into the holder inside the washer station.
5 Gallon Water Bottle Filling Machine: This filling machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water etc.
	Light Checker With two light pipes, inspect bottle water after filling function.
Cap Heat Shrink Machine This cap heat shrink machine is used to shrink the plastic label on the 3& 5 gallon caps. It adopted good quality imported stainless steel, simply operation and working smoothly.
	Automatic barrel bagging machine: Automatic film feeding, feed, bag, sealing once completed, save manpower, improve efficiency, and realize unmanned operation docking production line. Teflon anti-stick coating alloy thermostatic sealing knife, sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful.
Bottle conveyor system: Including empty feeding system, plastic chain full barrel conveyor system, SUS34 material

Company information
Workshop detail
Our exhibition
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
