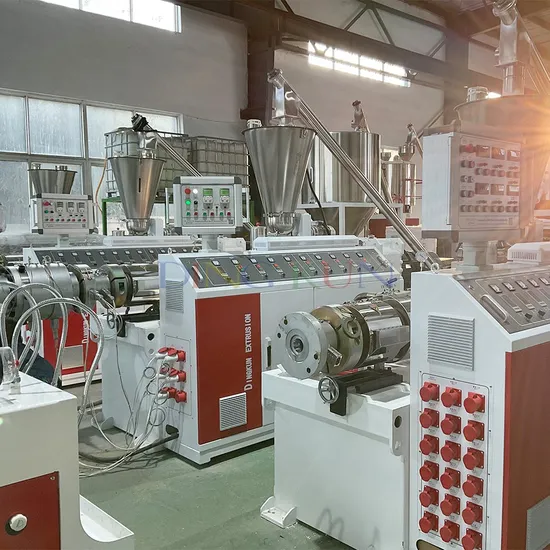

PVC Pipe Manufacturing Machine / Electric PVC Pipe Machine / Plastic Machinery
Basic Info.
Model NO.
SJSZ65/132
Screw No.
Double-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
After-sales Service
Provide Lifelong Service, on Site Repair and Upgra
Plastic Machine
PVC Pipe Extrusion Machine
Main Extruder
Sjsz65/132 Double-Screw Extruder
Pipe Diameter
20-110mm or 75-160mm
Main Motor
Siemens Beide
Output Capacity
180-250kg/Hr
Total Installed Power
About 50kw
Overall Dimension
About 24m*2m*2m
Raw Material
PVC Powder
Power Supply
380V 3phase 50Hz or as Your Demand
Operator
1-2 Persons Per Shift
Inverter
ABB
Temperature Meter
Omron
Relay / Switch
Schneider
Transport Package
Mold: Wooden Package. Outside: Stretch Film
Trademark
DINGKUN
Origin
Qingdao of Shandong
HS Code
847209000
Production Capacity
180-250kg/Hr
Packaging & Delivery
Package Size
1200.00cm * 230.00cm * 260.00cm
Package Gross Weight
100000.000kg
Product Description
PVC Pipe Production Line / PVC Pipe Extrusion Making MachineProduct Description
Produce process :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker
Main Composition
| Item | Quantity |
| 1.SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit) | One set |
| 2.Die and Mold | One set |
| 3.Vacuum calibration unit | One set |
| 4.Haul-off unit | One set |
| 5.Cutter Unit | One set |
| 6.Stacker | One set |
| Optional auxiliary machines for your choice | |
| 1.Printer | One set |
| 2.Mixer | One set |
| 3.Crusher | One set |
| 4.Milling machine | One set |
| 5.PVC pipe belling machine | One set |
Product Parameters
Technical parameter
| Diameter(mm) | 16-40dual | 20-63dual | 20-63 | 75-200 | 160-315 | 315-630 |
| Extruder mode | SJZ51/105 | SJZ65/132 | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
| Extruder power (kw) | 18.5AC | 37AC | 18.5AC | 37AC | 55AC | 110DC |
| Max lineal speed (m/min) | 0.5-10 | 0.5-15 | 0.5-10 | 0.5-8 | 0.5-6 | 0.5-4 |
| Max capacity (kg/h) | 120 | 250 | 80-120 | 180-250 | 280-350 | 500-600 |
| Installation area | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m |
Detailed Photos
1. SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)
2. Vacuum calibration unit
3. Haul-off unit + cutter unit
4. Stacker
SJSZ80/156 PVC PIPE MACHINE FOR 160-250mm / 160-315mm Pipe
PVC DOUBLE PIPE MACHINE
Packaging & Shipping
Loading Container & Delivery
Company Profile
Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)
DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.
1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
