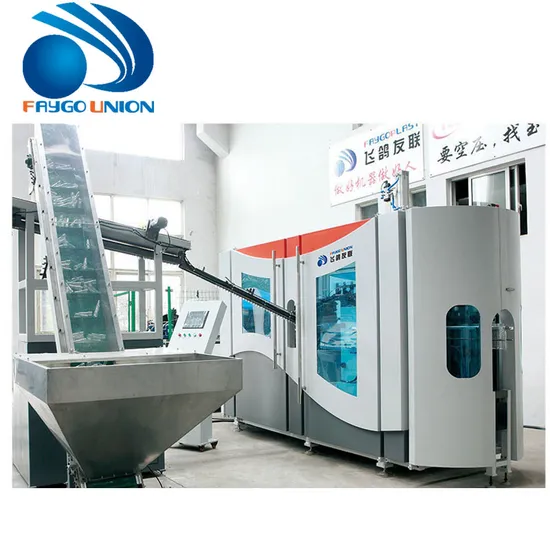

Plastic PP PE PS Bottles Injection Blow Molding Machine

Product Description

I. Brief Introduction:
FG6is the new generation of linear blowing machine. Comnpared with traditional blowing machine, It has 3 improvement:
1) High speed: China first blowing machine whose single mold speed can reach 1800 BPH.
2) Energy saving: It has only 2 lamp boxes, at least 20000USD can be saved per year, electrical ammeter is equipped.
3) High Reliability: Machine adopts modularized design principle, the movement is integrated in 3 sets servo motor.

Main Parameter
Model		FG-4(4 cavity)
Capacity		Depend on bottle design	9600-10000PCS/H
Applicable Preform		Height	<330mm
		Neck	20mm-25mm
Applicable Bottle		Neck	20-25mm
		Volume	Max. 2Liter
		Height	Max. 328mm
		Diameter	Max. 105mm
Electric consumption		Install power	51kw
		Heating oven powder	46kw
		Heating Oven operating power	26kw
Air consumption		Pressure	6m3/min 3.0MPa
		Capacity	6m3/min 3.0MPa
Mold Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	45L/min
Oven Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	26L/min
Machine Dimension		L*W*H	3900*900*2500mm
		Weight	3500kg
Capacity: 5000-5500BPH(based on 1L)
Max. Volume: 2 Litter Total Size: Blowing Main machine: 3.6*1.3*2.3m Sorting machine: 2*1.5*1.5m/Loader: 3*1*1.5m
Main electrics
Pneumatic part& Cylinder	Valve			German
Electric part	PLC			Japan Mitsubishi
	Servo System			Japan Panasonic
	Frequency inverter			Japan Mitsubishi
	Operating system			Japan Mitsubishi
	Touch screen			Japan Mitsubishi
Blowing	Valve			Japan Parker
One-way Valve				German
Throttle Valve				German
Reducing Valve				German DURAY
Note: All the electrical components adopts CE, UL, CCC approved international Advanced high-tech product

II. Technical Features:
1. Servo driving and cam linking movement blowing section:
The unique cam linking system integrates mold-opening, mold-locking and bottom mold-evevating in one movement, equipped with high speed
servo motor, which greatly shortens the blowing cycle and accelerates the spped.
2. Minimize distance of heating heads,maximize the heating efficiency.
Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven it can save more than 30%
consumption.Equipped with the air cycling system and redundant heating discharge system it ensures constant temperature in the heating zone.
3. Efficient and soft perform inlet system,ensure the spped and preform protction.
By rotary and soft preform loading system, the speed of preform feeding is ensured, meanwhile, the preform neck is well protected.
4. Modularized design conception, convenient for maintenance and changing changeovers
The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.

One Stop Station Services
1) Stand-by engineers team to provide overseas installation and commissioning service.
2) 1 year warranty. During warranty, we provide free of charge for repairing cost.
3) Lifetime maintenance. After-sales department can provide life long maintenance service.
