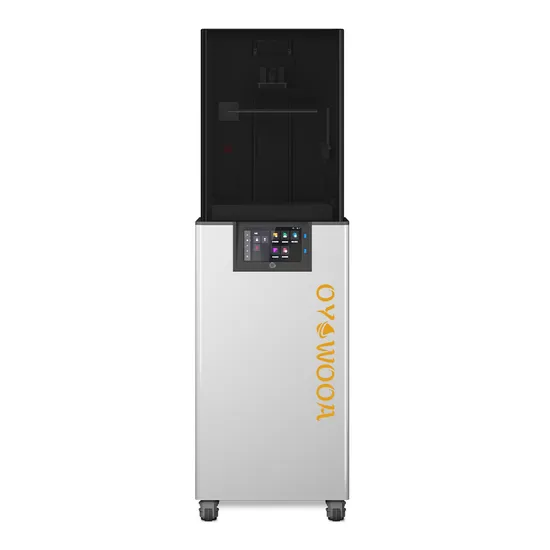

Oyowooa K1 New Jewelry Casting LCD 3D Printing Machine Jewelry Dental Resin Printer Industrial 3D Printer for High Flexural Strength Transparent Surgical Dental
Basic Info.
Model NO.
OY- K1
File Format
STL
Nozzle Number
1
Connection
USB
Precision
100-200mu
Thickness
<20mu
Printer Material
Resin
Forming Technology
LCD
Operating System
Ubuntu Linux
Screen Size
13.6 "7K or 16K Optional
Screen Resolution
6480X3600dpi / 15120 X 6230dpi
Z-Axis Accuracy
0.02mm
Xy Axis Accuracy
±0.05mm
Z-Axis Effective Travel
390mm
Print Layer Thickness
0.1, 0.05, 0.025mm
Connection Mode
USB
Print Speed
40mm/Hr
Molding Technique
Light Curing (LCD) Surface Forming
Operating Temperature
20°c to 30&Deg
Transport Package
Paper Packing
Specification
53*44*174cm
Trademark
OYOWOOA
Origin
China
HS Code
8477590000
Production Capacity
500000/One Years
Product Description
Product DescriptionProduct ExamplesProduct Parameters
| OY-K1 | Product Name | Industrial LCD 3D Printer Machine |
| Brand/Model No. | OY-K1 /K1 Pro | |
| Z-axis Effective Travel | 390mm | |
| Z-axis Accuracy | 0.02mm | |
| LCD Screen (K1-7K) | 13.6 inch 7K (6480 x 3600dpi) | |
| Printing Size (K1-7K) | 298 x 165 x 390mm | |
| LCD Screen (K1-8K ) | 16inch 8K LCD Screen | |
| Printing Size (K1-8K) | 353 x 192 x 390mm | |
| LCD Screen (K1-16K) | 13.5 inch 16K (15120 x 6230dpi) | |
| Printing Size (K1-16K) | 302 x 162 x 380mm | |
| Print Speed | 10~30mm/hr. or 1.57in./hr. (Max) | |
| Layer Thickness | 0.1/0.05/0.025mm | |
| Support Software | ChiTuBox, Tango | |
| File Format | STL | |
| Data Input | USB | |
| Operating Environment | 20-30°C (advise 20-25°C) | |
| Working Humidity | 50%-70% | |
| Rated Power & Voltage | 1200W (220V 50HZ) | |
| Printer Dimension | 530 x 438 x 1738 mm/ 68 x 21 x 17inch | |
| Printer Weight | 100kg / 220lbs | |
| Technology | Light curing (LCD) surface forming | |
| Clamshell Design | Effectively blocks UV radiation | |
| Release Film | Replaceable ACF Release Film | |
| 3D Printing Photopolymer Resin | Rigid 4000 Resin | Standand Rigid Resin |
| 280ºC High Temp Resin | ABS-like Resin | |
| Tough 2000 Resin | Water Washable Resin | |
| Tough 1500 Resin | Ceramic-like 8K HD Resin | |
| Dental Model Ortho Resin | Ultra-Clear Resin | |
| Dental Model Repaired Resin | Rubber-like Resin | |
| Castable Wax Resin | Silicone-like Resin | |
| Replacement Modules | Buid Platform | 13.6inch 7K LCD Screen |
| Resin Tank | 13.5inch 16K LCD Screen | |
| ACF Release Film | 16inch 8K LCD Screen | |
| Core Components | Automotive Grade LED Beads -Imported LED light source, advanced COB technology, over 92% light uniformity | |
| Z-axis 4 sliders Dual-track TBI ground ball screw design makes more stable printing. | ||
| Servo motor - Improves position accuracy and anti-interference ability . | ||
| ACF release film - has strong adhesion, but the model is easy to peer off. | ||
| Big Resin Vat, 5KG resin to meet the large dimension printing, The tank can be heated automatically. | ||
| Fast stable heating system, Adjustable Real-time dynamic constant temperature keep it not over 40°C. | ||
| Upgraded build platform - Non leveling, easy to demould. | ||
| 5 inch touch-control, Multi-language interface, Show real-time printing progress. | ||
| Modular Settings with replaceable modules, simple maintenance, does not affect production efficiency. | ||
| After-Sale Service | Provide the printing parameters from our original factory resin. | |
| Provide matched technical support and parameter pack . | ||
| Can print upon customers' real model . | ||
| Provide replacement repair service for damaged parts. | ||
Company ProfileDongguan Tianxingjian Electronic Technology Co., Ltd. was founded in 2003, headquartered in the "world factory" known as Dongguan City, near to Shenzhen and Guangzhou City, convenient transportation.
Our company focuses on the development and production of 3D printers, 3D printing resins, 3D Printing Service, UV curing resins, epoxy resins and other products, we have more than ten years of professional experience, concentrate on providing a total bonding solutions for various industries.
Our products are widely used in various industrial manufacturing fields: intelligent security equipment, display, artificial intelligence, digital products and other electronic information industry, Handicrafts, Toys, Furniture lighting, UV transfer printing, 3D printing and other industries.
We have advanced production and experimental equipment, precision inspection and analysis instruments, professional R&D engineer team and technical workers, strict quality management system to ensure the accuracy and stable quality of products, and strive to become the benchmark of the 3D printer industry.
