1m Small Cold Pavement Milling Machine Xm1003 for Sale
Basic Info.
Model NO.
XM1003
Type
Cold Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Contanier
Specification
4690*2500*3500mm
Trademark
top brand
Origin
China
HS Code
8479109000
Production Capacity
200units/Month
Product Description
Product DescriptionXM1003 Road Building Machinery

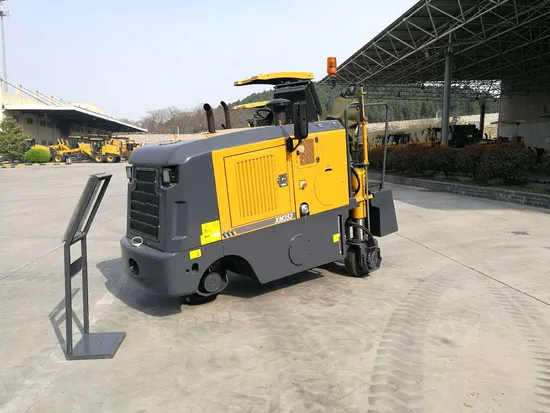

XM1003 road milling machine is a high-performance 1m-wide milling machine mainly used for the digging and renovation of asphalt concrete pavements in highways, downtown roads, airports, cargo yards, and parking lots.* This machine is powered by Shangchai 162kW electronic injection engine is applied to achieve higher power reserve than domestic like products. With higher working power, this engine can be used to effectively handle the working conditions with harder material and higher milling depth.* Engine complies with European III /American III /China III emissions standards, green construction, reduces environmental pollution. With the fuel consumption at 36.7L/h under rated power, this engine features lower fuel consumption and better operation economy.* The full-hydraulic four-wheel drive traveling system is applied to provide powerful traction force.* The 45m/min working speed is higher than the like products. Three working speeds are provided to achieve more accurate matching between working speed and working load.
Product Parameters
| Item | Unit | XM1003 | |
| Milling drum | Milling drum Milling width | mm | 1000 |
| Milling depth | mm | 180 | |
| Tool spacing | mm | 18 | |
| Number of tools | | 82 | |
| Rotor diameter with tool | mm | 700 | |
| Engine | Model | | SC9DK220G3 |
| Cooling method Water cooling | | Water cooling | |
| Number of cylinders | | 6 | |
| Rated power/speed | kW/rpm | 162/2200 | |
| Displacement | L | 8.8 | |
| Rated power consumption | L | 36.7 | |
| Comprehensive fuel consumption | L | 12.3 | |
| Emission Standard | | National 3 | |
| Electrical system | V | 24 | |
| Box capacity | Box capacity Fuel tank | L | 350 |
| Hydraulic oil tank | L | 130 | |
| Water tank | L | 800 | |
| Driving performance | Driving performance Maximum operating speed | m/min | 40 |
| Maximum speed | km/h | 8 | |
| Theoretical climbing ability | % | 50 | |
| Ground clearance | mm | 180 | |
| Tire | Tire Tire Form Solid Rubber Tire | | Rubber Tire |
| Front tire size | mm | 645×300 | |
| Rear tire size | mm | 645×300 | |
| Milling material conveying | Milling material conveyor Belt width | mm | 400 |
| Theoretical feeding capacity | m3/h | 84 | |
| Transport size | Shipping Size Host Size (L×W×H) | mm | 4690×2500×3500 |
| Host size (right leg swings into the frame) (L×W×H) | mm | 4690×1950×3500 | |
| Folding conveyor size | mm | 8050×1070×980 | |
| Machine weight | Machine Quality Work | kg | 15600 |
| Front axle load (under working quality) | kg | 6700 | |
| Rear axle load (under working quality) | kg | 8900 | |
Detailed Photos
