Eterne Gold Centrifugal Concentrator Stl Processing Mining Searching Centrifuge

Product Description

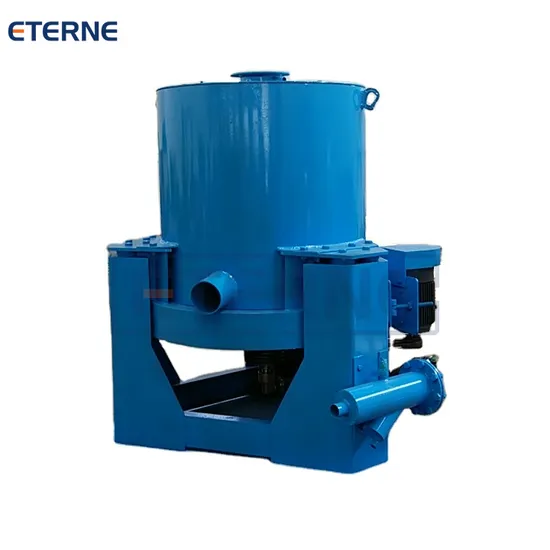

ETERNE Gold Centrifugal Concentrator STL Processing Mining Searching Centrifuge

1.Company Information
1.Shandong Eterne Machinery Co., Ltd. is a modern enterprise comes from Weifang city, Shandong Province, China, which is integrating R & D, production and service including mining equipment and woodworking equipment.
2.The main products for our company are dredger, gold mining equipment, aquatic weed harvester, sand washing equipment etc.
3.Our products have been sold all over the country and exported to more than 50 countries, such as Bangladesh, Philippines, Indonesia, Malaysia, Suriname, Bolivia, Ecuador, Nigeria, South Africa, Mali, Tanzania, etc.
4.We can independently design and develop reasonable and feasible product plans according to the use requirements of customers and their special geographical environment.
2.Product Description
Centrifugal gold concentrator utilizes the principles of a centrifuge to enhance the gravitational force experienced by feed particles to effect separation based on particle density.
It can be used not only for alluvial gold mining, but also for recover the natural gold from hard rocks, to replace amalgamation, and recover gold from the tailing.applications shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1000 times.
In recovering the natural gold in lode ore with size -0.074mm, the gold recovery is up to 98%.

Technical Parameter For Centrifugal Concentrator
Model	STL40	STL60	STL80	STL100
Working capacity	5-10t/h	30-50t/h	40-60t/h	80-100t/h
Feeding size	0-4mm	0-6mm	0-6mm	0-6mm
Feeding density	<30%	<30%	<30%	<30%
Recoil water	4-10 m3/h	10-20 m3/h	20-30 m3/h	40-60 m3/h
Fine ore output	10-20kg/time	30-50kg/time	60-80kg/time	120-160kg/time
Motor power	4 kw	7.5 kw	15 kw	18.5 kw
Water pressure	0.1Mpa	0.16Mpa	0.18Mpa	0.2 Mpa
Dimension	1180*1140*1250mm	1970*1670*1750mm	2300*1800*2200mm	2500*2000*2400 mm
Weight	750 kg	1700 kg	2300 kg	3500 kg

3.Advantages and Characteristics
High concentrating ratio and high recovery
Steady recovery performance, reliable
No need chemical, environmental
4.Packaging & Shipping
For the small size machine, usually delivered by LCL.
For the large scale machine, we delivered by containers or in bulk.
5.Service&Certificate
1.Professional beneficiation for 15 years.
We have our own professional research and development team.
2.Eterne provides optimized solutions for your mine, one-stop service for mineral processing plant, include sample test, mine design, equipment manufacture, etc.
3.Short delivery time: All products you want can be completed within short time.
4.24 Hours After-sale service and solve the after-sale problems in time.
6.FAQ:
1. Are you factory?
Yes, established in 2002, over 15 years factory
2. How big are you?
In total 6 work shops, 15,000, office 3000, 80 workers
3. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment
4. Whats the capacity of the gold/diamond mining equipment ?
from 5TPH to 450TPH
5. What brand engine/diesel generator do you use?
as required
