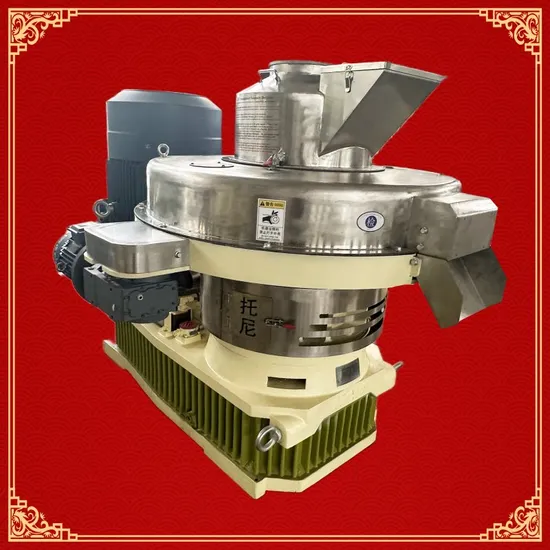

Customized Cheap Reusable Multi Color Wood Pellet Mill

Product Description

Customized Cheap Reusable Multi Color Wood Pellet Mill
Introduction of wood sawdust pellet pressing machine Biomass Pellet Machine, used to make biomass wood pellet, is popular with industrial furnance and home warming stove heating.

Detailed Features: 1. It can be stored for a long time and improve poultry dainty and assimilation function.
2. It also can shorten the period of feeding, so it can efficiently guarantee many users' productive cost.
3. It adopts screw-center adjusting pressure structure; the pressed roller's gap can be adjusted slall or big , s oit can meet the different materials demand and make sure the pelleting effect.

Requirement of Raw Materials:
Size:2-4mm(All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)

Moisture: Generally, 10-15% is best for producing good quality wood pellet. If too high, or too low, you need to dry or moisture them first.

Raw materials: The materials can be wood chips,tree branches,corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, etc.
Output pellets:Pellets Diameter: 4mm, 6mm, 8mm, 10mm, 12mm
Main Spare Parts of wood sawdust pellet pressing machine
Ring Die 1. Made of alloy and stainless steel;
2. The professional heat treatment processing technology can make its hardness above HRC62.
3. Vertical Ring die, feeding vertically.
4. Double-lay die, dual use. When one side is damaged, turn over and use the other side.
5. Hole diameter:4mm, 6mm, 8mm, 10mm, 12mm
6. Service Time: 2500-3000 hours
Roller
1.Materials:Stainless steel 2.Service:2000-2500 hours 3.According to actural factors, such as capacity and raw material, two or three or four rollers are used.
Motor
Rated Vlotage: 380V,
Rated Frequency: 50HZ,
Also made according to user need(Brand and vlotage).
400V, 415V, 420V, 440V, 690V.etc.
Other Spare Parts
Gear box,Main Shaft, Bearing, Electric control box and auto-lubricate system.

Model	Power(KW)	Capacity(T/H)	Size(MM)	Weight(T)
TYJ551-II	90-110	1-2	2364*1550*1705	5.5
TYJ551-III	132	2-2.5	2364*1551*1705	5.5
TYJ760-III	160/185/200	2.5-3.5	2564*1750*2150	9
TYJ860-III	220-250	3-5	2664*1950*2150	13.5

Clean Production Workshop and Professional Device

Customers' pellet production site with wood sawdust pellet pressing machine
Packing and Delivery of wood sawdust pellet pressing machine
Certification
Welcome to TONY Company
SHANDONG TONY ENVIRONMENTAL PROTECTION SCI-TECH CO.,LTD is an integrated enterprise specializing in developing, manufacturing, customer training and international trade of pelleting equipments for years. The unique industrial chain and geographic location are the leading advantages for Tony to develop and produce biomass pellet equipments. Main products are biomass energy ring die and flat die pellet machine, flat die,ring die feed pellet machine, biomass pelleting making production line, air-flow and drum series drying equipments, crushing and grinding equipments, cooling,screening ,mixing and conveying equipments.
