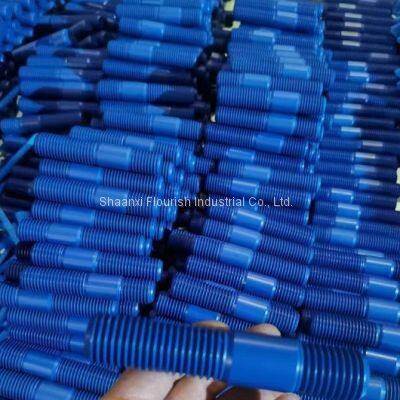

Stainless Steel Process Double Ended Bolt PFTE Coating ASTM A193 B8

Product Details

Product Description

Product Description
Name:Material:Standard:Finish:Thread:Colour:High Light:

Stud Bolt	Carbon Steel, Stainless Steel And Alloy Steel
ANSI/ASME, JIS, EN, DIN, BS,GB, SH, HG, IFI, ISO	PTFE / Teflon Coating
UNC,UNF,BSW	Blue
A193 B8 Double Ended Bolt, PTFE Double Ended Stud Bolts, Stainless Steel Process Thread Studs

ASME/ANSI B18.31.2 Continuous Thread Studs Coarse Teeth / Staninless Steel ASTM A193 B8 Stud Bolts
PTFE coating is a surface treatment that imparts physical properties such as fluoropolymer properties, such as non-adhesive, heat and cold resistance, slip properties, electrical properties, wear resistance, chemical resistance, corrosion resistance and non-wetting properties. Applications for Teflon coatings range from small parts such as bolts, nuts and bearings to large parts such as aerospace industrial equipment. It can be used over a wide range of 260 degrees to -240 degrees and has excellent non-flammability.
Teflon coating process:
Typically, the substrate is degreased, roughened, primed and dried, and then baked using a spray gun or electrostatic powder sprayer. Therefore, it is not possible to coat the equipment as is with thermal equipment or accessories. The accuracy after spraying cannot be achieved with surface accuracy due to the execution of the spraying. Teflon coating can be used on metals in general, but may be distorted if the material is thin. Deformation is also possible when aluminium, copper or stainless steel are used up to a thickness of approx. 0.5 mm. In addition, Teflon coating is a surface treatment that can be reapplied. If the effect wears off during use, the properties can be restored by stripping it off and recoating it.

Standard	ANSI/ASME, JIS, EN, DIN, BS,GB, SH, HG, IFI, ISO
Size	Standard & non-standard, customized
Material	Carbon Steel, Stainless Steel and Alloy Steel
Grade	SAE J429 Gr.2, 5,8; ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9
Thread	UNC,UNF,BSW
Finish	PTFE coating
Packing	Bulk in cartons on wood pallet or according to customer special demand.
Application	Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile:
Test Equipments	Desktop direct- reading spectrometer, cutting machine, automatic pre- milling machine, polishing machin,
	hard-testing gauge(Vickers), metallography microscope, electrolytic thickness gauge, tensile testing machine,
	salt spray device, magnetic detection machine(magnetic particle flaw detector), Caliper, Go&No-go gauge and etc.
Supply Ability	About 100 tons per month
MOQ	50pcs
Trade Term	FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment	T/T, L/C ,D/P , Western Union
