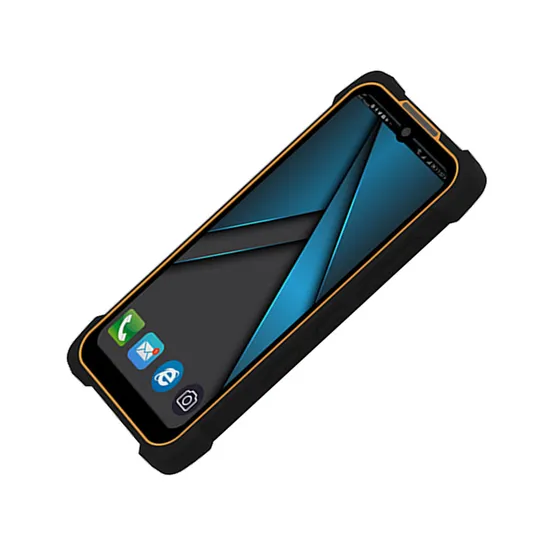

Handheld NFC Reader Industrial 1d 2D Qr Code Desktop Barcode Scanner Android Tablet Rugged PDA Mobiles C6300

Product Description

Product DescriptionC6300
Cost-effective Android 11.0 mini PDA scannerThe C6300 is a powerful and durable mobile device that fits in the palm of your hand. It has endless applications in industries such as logistics, warehouse management, retail, and express. The optional built-in 1D/2D barcode scanner can be used to track inventory, for Barcode Medication Administration, and point-of-sale applications.- Android 11.0 OS
- NFC and QR Code Scanner optional
- 4+64 GB memory (6GB RAM/128GB ROM optional)
- 5.7-inch Industrial capacitive screen
- Long battery working time >8 hours
- GPS/AGPS supported
- Rear 13MP,Front 5MP auto focus camera with LED flash
- Compact & lightweight design for easy portability Product Parameters

Operation System
OS	Android 11.0
CPU	MTK octa-core Processor 2.0GHz
Memory	4 GB RAM / 64 GB Flash (6GB RAM/128GB ROM optional)
Languages support	English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Hardware specification
Screen Size	5.7 inch color 1440 x 720 display ,500 nits
Touch Panel	Gorilla glass III with 5 points Capacitive Touch Screen
Buttons / Keypad	Power, V+ -,function key*1, SOS*1, scanner key*1
Card readers (optional)	Contactless Card , Support ISO / IEC 14443 A&B,Mifare, felica card conform to EMV / PBOC PAYPASS standard
Camera	Rear 13MP,Front 5MP, with flash and auto focus function
Indicator Type	LED, Speaker, Vibrator
Battery	Removable rechargeable li-ion polymer, 4000mAh/3.8V
Symbologies
1D Barcode	1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic
2D Barcode	2D :PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc
Communication
Bluetooth®	Bluetooth®4.0
WLAN	Wi-Fi 802.11a/b/g/n/r/ac(2.4G+5G dual-band Wi-Fi), fast roaming,5G PA
WWAN	2G:B2/B3/B5/B8 3G:WCDMA:B1/B5/B8,CDMA BC0,TD-SCDMA:B34/B39 4G:FDD-LTE:B1/B3/B5/B7/B8/B20,TDD-LTE:B34/B38/B39/B40/B41
GPS	GPS/BDS/Glonass, error range ± 5m
I/O Interfaces
USB	Micro USB*1 OTG , 1*USB 3.0
POGO PIN	4pin on bottom:(1*USB) 5V input,support OTG
SIM Slot	Single SIM card
Expansion Slot	Micro SD, up to 128 GB
Audio	One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones
Enclosure
Dimensions ( W x H x D )	150mm(H)x73.4mm(W)x9.8mm(D)
Weight	400g (with battery)
Durability
Drop Specification	1.2 m drop to concrete, across the operating temperature range ,MIL-STD 810G
Sealing	IP65
Environmental
Operating temperature	-15°C to 55°C
Storage temperature	- 20°C to 70°C (without battery)
Charging temperature	0°C to 45°C
Relative Humidity	5% ~ 95% (Non-Condensing)
What comes in the box
The standard package contents	C6300 Device USB Cable Adaptor (Europe)
Optional Accessory	Hand Strap Charging docking Vehicle cradle Car holder

Certifications
Company ProfileProfessional ODM industrial terminal designer and manufacturerShenzhen Hosoton Technology Co., Ltd. is a experienced player in R&D, manufacturing and marketing digital smart industrial equipment, such as Tablet PC, pipe endoscope camera, handheld PDA scanner and any other ODM industrial devices. Our products are widely applied to logistics, store management, municipal construction, finance etc.
FAQ1.How to order?
We will quote the price to customers after received their requests. After customers confirmed the specification, they will order samples for testing. After inspected all devices , it will be sent to the customer by air.
2.Do you have any MOQ (minimum order)?We don't have any MOQ and 1pcs sample order will be supported .
3.What is the payment terms?T/T bank transfer is accepted ,and 100% balance payment before goods shippment
4.What is your OEM requirement?You can choose multiple OEM services includes boot animation, color box design, change model name, logo label design and so on , and some of these services can be done for 1 qty.
5.How many years have you been established?We focus on the rugged mobile device industry over 9 years.
6.How long is the warranty?We offer 1 year warranty to all of our products, and we also provide extended warranty based on your requirements .
7.How long is the delivery time?Normally the sample devices could be delivered within 5 working day , and the bulk order will depend on the quantity .If you need a drop- shipping service, we are experienced and can ship directly from China to your customers.
8.What are the accessories?The default accessories of our rugged devices are chargers and USB cables. There are multiple optional accessories are available, such as vehicle mount, docking station, wireless mat, hand strap, and so on. Welcome to visit our product pages for more details!
9.How to repair the devices if any issues?We will offer online technical support for product issues. If the issues is non-human factor, we will send components and parts to customers to repair.
10.How to install multiple functions into 1 device?You can ask us to install the 2D scanner, RFID, and high accuracy GPS module into the rugged device before shippment ,also we could provide ODM service for some specific function.
11.What kind of software support I can get?Hosoton provided lots of tailor-made rugged solutions to customers, and we can also provide SDK, software online upgrade , etc.
12.What kind of services can you provide?There is two services models for your option ,One is OEM service ,which is with customer's brand based on our off-the-shelf products ,the other is ODM service according to the individual demands ,which included Appearance design ,structure design ,Mold development ,software and hardware development etc.
