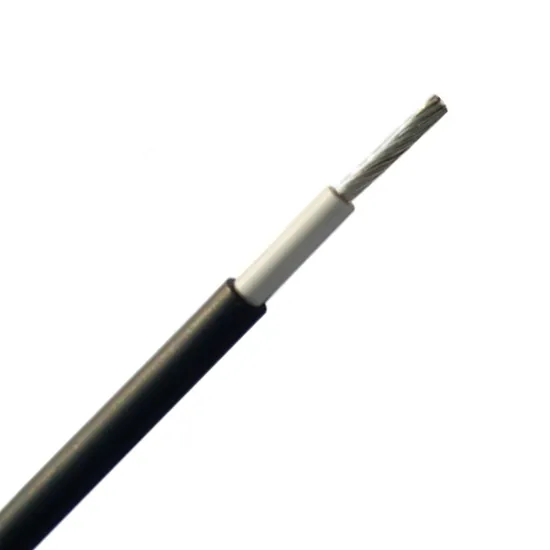

Tinned Copper XLPE Electron-Beam Cross-Linked Polyolefin Complia Insulation Solar Cable

Product Description

Photovoltaic Power PVC Cable
APPLICATION
Flexible cables suitable for PV solar DC current systems.The max allowable DC voltage 1.8 kV(Conductor to conductorsystem without earth).Used at security level lI location.These cables are allowed to be connected in a multi-structural manner.The cable is designed for operation at temperature up to 90°ºC.
STRUCTURE
Conductor: Tinned copper flexible conductor of Class 5 in 2Pfg1169
Insulation: 120ºC XLPE
Sheath: 120ºC XLPE
Color: red or black TECHNICAL INDICATORS
Nominalvoltage: U0/U0.6/1KV(AC)1800DC(non-load)
Testvoltage: AC65KV/5min(20°ºC±0.5) or DC15KV/5min(20°±0.5)withoutbreakdown
Ambienttemperature: -40°C~+90°ºC
Conductor maximumtemperature: 120°ºC
Maximum short circuittemperature≤250°C/5S
Expected service life: 25 years
Bending radius: ≥4D
CHARACTERISTICS COMPLIANCE
Fire-resistanceEN60332-1-2
Acid and alkalisolution: EN60811-2-1
Halogen determination: EN50267/EN60684
Weatherresistance/UVresistanceHD605/A1
Compliance certification: ROHSTUV
Executive standard: 2 Pfg1169/08.2007
DIMENSIONS, PARAMETER

No.of cores x Nominal section area	Nominal Construction of conductor	Nominal Insulation thickness	Nominal Sheath thickness	Nominal Overall diameter	Nominal Cable weight	Max.Resistance of conductor at 20ºC	Current Carrying Capacity
PV Single core Solar cable
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)	A
1 x 1,5	30 x 0,25	0,8	0,8	4.8	38	13,7	30
1 x 2,5	50 x 0,25	0,85	0,9	5.4	46	8,21	41
1 x 4	56 x 0,30	0,85	1,0	6.1	61	5,09	55
1 x 6	84 x 0,30	0,9	1,1	7.0	90	3,39	70
1 x 10	80 x 0,40	0,9	1,2	8.2	131	1,95	98
1 x 16	128 x 0,40	0,9	1,2	9.3	187	1,24	132
1 x 25	200 x 0,40	0,9	1,2	10.7	278	0,795	176
1 x 35	280 x 0,40	0,9	1,2	12.4	374	0,565	218
PV Twin core Solar cable
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)	A
2 x 1,5	30 x 0,25	0,8	0,8	4.8x9.6	76	13,7	30
2 x 2,5	50 x 0,25	0,85	0,9	5.4x10.8	92	8,21	41
2 x 4	56 x 0,30	0,85	1,0	6.1x12.2	122	5,09	55
2x 6	84 x 0,30	0,9	1,1	7.0x14.0	180	3,39	70
2x 10	80 x 0,40	0,9	1,2	8.2x16.4	262	1,95	98
2 x 16	128 x 0,40	0,9	1,2	9.3x18.6	374	1,24	132
2 x 25	200 x 0,40	0,9	1,2	10.7x21.4	556	0,795	176
2x 35	280 x 0,40	0,9	1,2	12.4x24.8	748	0,565	218

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
