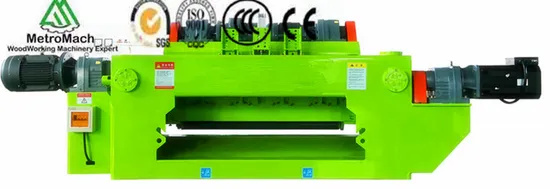

Hot Sale Automatic CNC Plywood Panel Core Face Veneer Peeling Cutting Lathe Machine
| US$10,000.00-20,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
RBD/BS1400
Certification
CE, ISO, FDA
Voltage
380/415V
Peeling Speed
80m/Min
Max. Log Dia
500mm
Veneer Thickness
0.6-5mm
Control
PLC Control
Customized
Customized
Knife Size
1500mm
Color
Cuatomized
Transport Package
Standard Export Packing
Specification
4700x1900x1500mm
Trademark
METRO MACH
Origin
Linyi City, China
HS Code
846596000
Production Capacity
1000 Sets/Year
Product Description
PRODUCT DESCRIPTION Hard Wood 4FT Plywood Veneer Peeling Machine1. Fearures
Spindleless veneer peeling machine is used for make veneer .
And it is suitable for the eucalyptus, pine, cotton wood and another log.
The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.
veneer peeling machine is a very technical equipment in plywood line equipment.
2. Technical Parameters
| Working length | 970mm - 1270mm |
| Working diameter range | 80~500mm |
| Max. working speed | 60m/min |
| Veneer thickness | 0.6~5mm |
| Double rollers motor power | 11kw |
| Single roller motor power | 5.5kw x 2sets |
| Screw Feeding motor power | 7.5kw |
| Rotary clipper motor power | 2.2kw |
| Rubber belt conveyor motor | 2.2kw |
| Machine size | 4700x1900x1500mm |
| Machine weight | 5000kgs |
| Reducer Model | R87 Hard helical |
| Remark | Including 6 meter veneer conveyor |
3. Product Show
