Product Description

3 Gallon Plastic Bottle Manufacturing Plant Price Costs

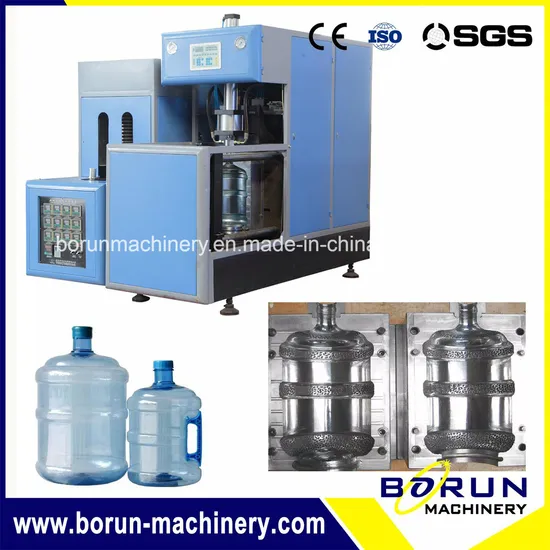

BM-12 Semi automatic 5 gallon bottle blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.

Equipment list:

No.		NAME	MODEL	QUANTITY
1		Semi-automatic Blow Molding Machine -rotary infrared pre-heater	BM-12	1set
2		HP Air Compressor	1.0m3/min 30Kg	1set
3	Air dryer		1.0m3/min 30kg	1 set
4	Air filter		1.0m3/min 30kg	1set
5	Blow Mold		5gallon one cavity	1set
6	Water chiller		3HP	1pc

*Spare parts List :
Seal cushion(10pcs);Lamps(5pcs);Fuse(3pcs);Switch(1pcs);breaker(1pcs);Silicon controlled (1pcs)
pressure adjust (1pc)
Features:
· Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
· The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
· The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
· The machine can be operated in the step-by-step mode and the semi-auto mode.
· The machine is small with low investment, easy and safe to operate.
Technical Parameter of blow molding machine:

Main machine	Item	parameter
Product Spec	Max. product volume (L)	20
	Max. preform neck size (mm)	200
	Max. product diameter (mm)	400
	Max. product height (mm)	600
	Cavities	1
Blow molding part	Die force (KN)	150
	Die stroke (mm)	340
	Max. mold size (mm)	420*500
	Mold thickness	adjustable
	Mold spacing (mm)	300
	Max. pulling stroke (mm)	400
	Operation pressure (Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	560
	Blow pressure (Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	650
	Theory capacity (pcs/h)	500-700
	Machine size (LxWxH)(m)	2.18*0.77*1.96
	Machine weight (KG)	1000
Oven	Temperature grade (rate)	8
	Heating time (S)	90-200
	Voltage (V)	220
	Frequency (HZ)	50/60
	Total power (KW)	15-40
	Oven Size (LxWxH)	2.37*0.68*1.65
	Oven weight (KG)	380

HP air compressor:
Function: Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure.

Air compressor	Unit	1.0M3/min 30KG
Volume	M3	1.0
Pressure	Kg	30
Speed	r/min	620
Power	KW	11
Overall Dimension	mm	1850*850*1250
Weight	kg	400

Air Filter:
Functions: Air filter is to clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.

Refining-Filter	Unit	1.0M3/min 30Kg
Flow Capacity	M3/Min	1
Max. work pressure	Mpa	3.0
Inlet Temp.	ºC	≤50
Cold Medium	mm	750*350*350
Weight	Kg	20

Air dryer:
Function: Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.

Refrigeration Air Dryer	Unit	1.0M3/min 3.0Mpa
Flow capacity	Nm3/min	1.0
W.P	Mpa	3.0
Inlet Temp.	ºC	≤80
Dew point	ºC	23
Ambient Temp.	ºC	≤38
Power supply	V/HZ	220/50
Compressor power	Kw	0.75
Cold Medium	mm	950×650×1100
Weight	Kg	120

water chiller:

Model		03WCI
4.4/38ºC Cooling capacity(Kcal/h)		7188
Compressor		All-closed vorticity
Compressor power (KW)		2.5
Refrigerant		R22
Chilled water pump power(KW)		0.75
10ºC Max. flow rate of chilled water(L/min)		55
Flow water inlet and outlet pipe		1''
Condensing water rate L/min		≥36
Chilled water inlet and outlet pipe		1''
Exterior dimension	Length(mm)	1000
	Width(mm)	600
	Height(mm)	1180
Water tank capacity	L	50
Weight	Kg	150
