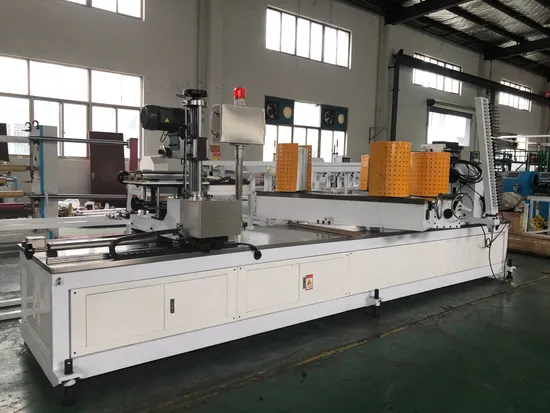

Automatic Paper Core Making Machine

Product Description

Automatic Paper Core Making Machine

It is used for making all kinds of paper core in different diameter and length, which is used for gift packing, tissue paper, stretch film, fax paper etc. it can make flowers, cloth movements, Split, cotton yarn, fax paper, film preservation, tissue paper and pipe tobacco production. Special high-precision lathe with a fixed three-jaw chuck, top flange bear more than solid, more convenient replacement Spindle
Model Type	JT-50A
Paper Roll Layer	1-8 layers
Paper Core Thickness	0.6mm-5mm
Paper Core Diameter	10mm-120mm
Paper Core Length	500mm-5000mm
Max. Machine Speed	20m/min

Specifications

Application Material

Kraft Paper

Main

It adopts Programmed Control System and meter counter, all the working parameters can be setup on the control panel. Delta PLC control system, a mainframe operating

It adopts HIGHTECH touch screen from Taiwan, all the parameters can be displayed on the control panel, and easy operation.

It adopts imported frequency inverter to control the AC motor, the machine working is more stable

It adopts separate electrical control box, and it is with input plug terminal, the sale after service and repair shall be more easier

Text Display operation, all of the features automatic memory, automatic preservation, automatic fault display.

It adopts dialogue monitor, it is with function of automatic store, trouble display, working position

It adopts imported single disc cutter to cut the paper core, it is high precision, and more bearable no longer incision more precision without wasting.

The transmission parts with extreme quiet design,adopt special treatment, it is high efficiency and low maintenance.

It adopts double side glue coating devices, the paper core is more sticky and stronger. The use of double-sided adhesive plastic trough independent stainless steel scraper polyurethane imports, production of a paper on the strength of stronger glue on one side of the traditional paper machine.

It adopts double photocell for the paper core length tracking, after get to the setup length, the paper core shall be cut off.

Circuit System with Remote Control function, users can travel in the office or in the field can be a computer monitor in the operation of plant equipment. If the circuit and system failure and other reasons, and in our communications tools and software control, plant technical personnel can be created to implement and maintain operational functions

Unwinding Stand

Specifications

The unwinding angle is adjustable on the control panel

It adopts compact structure for space saving.

The Main Technical Parameters
Paper Dish Dia.	100-1200mm
Layers	8
Weight	500 Kg
Overall Dimension(L x W x H)	2500 x 1500 x 1800 mm

Automatic Glue-spreader

Specifications

It adopts automatic glue recycle system.

It adopts stainless steel glue tank for rust avoiding,

single/ double side coating is available.

The Main Technical Parameters
Max. Layers	8
Type of Glue-spread	Circle
Type of Paper Delivery	lateral
Main Power	1.5 kw
Weight	500 Kg
Overall Dimension(L x W x H)	1300 x 1200 x 1700mm

Packaging & Shipping Packaging Details: Automatic Paper Core Making Machine is with Film wrapped and then exporting standard wooden case, 3 machines can be loaded in a 20 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
Delivery Details: Within 15 days after receipt of 30% payment by T/T. Automatic Paper Core Making Machine.
Company Information
Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production and
management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.
We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE
standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments
installed all over the world.
By Superior quality to create brand, prefect service to make satisfactory. We warmly welcome the friend from home and abroad to work with us
to win a mutual benefit future.
Our Service
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other
way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start
the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by
yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also
can be distributed to overseas as you required.
Q4. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year
,we will sent you for free.
