China Factory Best Selling Rotary Drum Fertilizer Granulating Machine for Compound Fertilizer Product Line

Product Description

Product Description
Performance characteristics
1.Technical innovation and structural improvement, the tube adopts special rubber plate lining or acid-resistant stainless steel lining, which realizes automatic scar removal and tumor removal and eliminates the traditional scraper device.
2.High wear resistance, easy maintenance, high ball strength, good appearance quality, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance.
3.Reasonable layout, leading technology, small power, no waste discharge, stable operation, convenient maintenance, reasonable process layout, advanced technology, low production cost.
4.High pelletizing rate, high drying efficiency, pelletizing rate up to 70%, with a small amount of return material, return material particle size is small, can be re-granulated;Through steam heating, improve the material temperature.
Product Parameters
Working principle
The main working principle is wet type granulation: Through a certain amount of water or steam, the basic fertilizer humidifying in the tank and occurring sufficient chemical reaction. Under a certain liquid conditions, with the rotation of the rotary drum movement, so that produce a squeeze force between the material particles and agglomerate into balls.

Model	Power(kw)	Diameter(mm)	Length(mm)	Installation Angle(degree)	Rotary Speed(r/min)	Capacity(t/h)
TDZGZ-1240	5.5	1200	4000	2-5	17	1-3
TDZGZ-1560	11	1500	6000	2-5	11.5	3-5
TDZGZ-1870	15	1800	7000	2-5	11.5	5-8
TDZGZ-2080	18.5	2000	8000	2-5	11	8-15
TDZGZ-3210	37	3200	10000	2-5	9.5	15-30

Feature of Rotary Drum Granulator Fertilizer Making Machine
1. High output, low return rate, can produce 10 tons of finished pellets per hour.
2. Wet granulation method, the surface of the finished granules is smooth, the shape is regular, and the hardness is high.
3. The inner wall is lined with rubber, which is anti-sticking and anti-corrosion. It can also play a role in heat preservation and improve drying efficiency.
4. It can process various organic and inorganic substances, such as poultry manure, kitchen waste, straw, sludge, etc.
5. The operation is simple, no staff is needed during the working period, and continuous production can be realized.
6. Environmental protection and energy saving, can effectively process organic waste, and at the same time perform heat recovery and save energy.
Company Profile

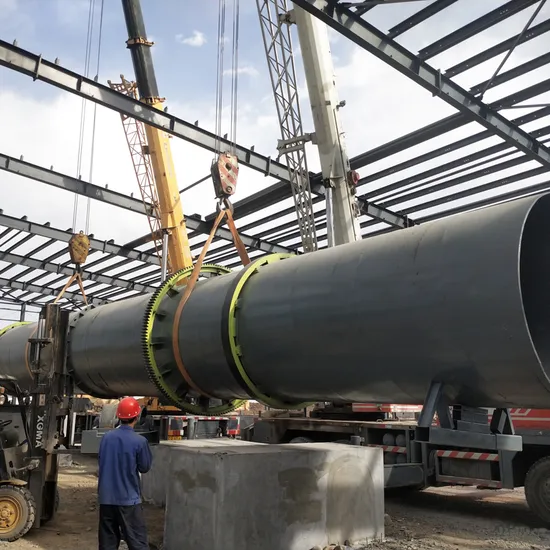

Installation Instructions

Notice:
And we also have other fertilizer processing equipments,like compost turner,crushing equipments,mixing equipments,drying and cooling machines and auxiliary equipments.
The different BB fertilizer,organic fertilizer and compound fertilizer production line and water-soluble fertilizer fermentation equipment can be provided too.
Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
After-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.

Packaging & Shipping

Notice: 1.Big machines packed in nude or shipping in containers. 2. Spare parts packed in wooden case. 3. If you have any special requirement, we will pack as request. FAQ
FAQ:
1. Are you trading company or manufacturer ? We are a manufacturer with a history over 40 years and have realized one-stop service for design, manufacture, installation, debugging and technical training. 2. How long is the delivery time? For standard machines or Components, it would be 5-10 days; For non-standard machines and customized machines according to clients specific requirements, it would be appointment time. 3. Do you arrange shipment for the machines? Yes, we will do that. For FOB or CIF price, we will arrange shipment for you. For EXW price, we will assist you in arranging shipment. 4. How about your product after-sales service? Normally we provide video and written technical support. If necessary, our engineers can also provide on-site service. Our product accessories can be selected according to the actual needs of the customer to choose the most appropriate way to deliver. 5. What kinds of certificate you have? ISO 9001: 2015 SGS and we can make other certificates according to customers' detailed requirements. 6. How to guarantee the quality and operation before loading? We have our own quality control department and have advance quality control stystem while from raw materials to finished products. All the machines and production lines shall be 100% checked and tested before delivery.
