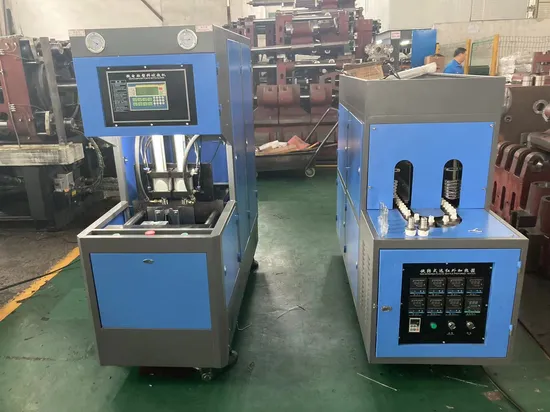

Plastic Perform Water Bottle Mold Pet Bottle Blow Blowing Injection Molding Machine
| US$10,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Video Technical Support, Free Spare Parts, Field I
Clamping System
Toggle Type Clamping System
Clamping Force
65kn
Station
Single Station or Double Station
Mould
One Cavity or Two Cavity
Auto-Deflashing
with Auto-Deflashing
Output Capacity
350-500 PCS/Hr
Output of HDPE
75 Kg/H
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Suitable Material
HDPE,PP,PVC,PS,PETG,LDPE
Transport Package
Film Packing
Specification
55II
Trademark
ShenZhou
Origin
Jiangsu, China
HS Code
8477301000
Production Capacity
15 Set/Sets Per Month
Product Description
SZ-55II full automatic blow molding machine produces bottles max.1L. It is suitable for PP, PE, HDPE, PET, ABS, PVC, and so on. The precision design of the heater ensures even heating for getting perfect plastic products. The double station design is suitable for mass production to meet your production request in big quantity.
Technical Parameters: ( SZ-55II ) (Double station and double die heads)
| Suitable material | LDPE, PE.HDPE, so on | ||
| 1L | |||
| Output capacity | 350-500 pcs/h | ||
| Size | 4.2X2.2×2.6(M) | ||
| Weight | 5TSuitable materialMax volume | ||
| System | Specification | Parameters | Note |
| Plasticizing system | Summarize | High efficient low power consumption plasticization system, transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing, High intension, Low noise reducer | ||
| Screw | ∮55 mm,L/D ratio 24, 38CrMoALA | Cooling system available | |
| Plasticization | 75 Kg/H | HDPE | |
| Heating Zone | 3 Aluminum Heater | Automatic heating | |
| Heating power | 5 KW/H | ||
| Extrusion Motor | Three-phase asynchronous motor | ||
| Cooling Fan | 3 zone | Automatic cooling | |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | ∮170mm | ||
| Heating zone | 3 Stainless steel heating cycle | ||
| Heating power | 5~7KW | ||
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mold opening, and clamping system | |
| Clamping force | 65KN | ||
| Template distance | 420X350mm | ||
| Max mold size | 400X350mm | ||
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting, auxiliary function available) | TAIWAN WISETECH system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Temperature control | The automatic temperature control module | ||
| Movement control | TAIWAN WSIETECH, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Servo system | Three-phase asynchronous servo motor (380V/220V,50/60HZ) | ||
| Servo pump | Japan Sumitomo | ||
| Valves | Imported oil pump valves and connections | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | 60Kg/cm² | ||
| Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6 Mpa | ||
| Air displacement | 0.7M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | The separate cooling system of mold, barrel, and oil system | |
| Cooling medium | Water | ||
| Water flow | 65L/min | ||
| Water pressure | 0.3-0.6MPa | ||
The main components of the machine
| electronic parts | |
| Name | Trader |
| Micro computer control system | TAIWAN WISETECH |
| Temperature Controller | TAIWAN HUIBANG |
| Auxiliary Relay | OMRON |
| contactor | SOLID |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | ABB from SWIZERLAND |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | YUKEN |
| Oil pump and connection | YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
| | |
Product Description
| Mould material | Mould hardness | Mould life |
| P20 | HRC 29-33 | 300000 shot |
| H13 | HRC>43 | 1000000 shot |
| 718 | HRC 30-36 | 500000 shot |
| S136 | HRC 48-52 | 50000 shot |
| 2344 | HRC>48 | 800000 shot |
3. PET Preform mold:
| Name | Mult-cavity preform mould |
| Cavity | 16 24 30 36 .... |
| Material | PET |
| Mould steel | S136 |
| Runner system | hot runner |
| Gate type | valve gate |
| Eject way | stripper |
| Mould running | full automatically |
| Customized | Per customer request |
Why Choose Us
Detailed Photos
Certifications
Company Profile
FAQ
1. Why choose us?
We not only supply the mold, but also the machine and related parts. Port city, convenient transportation.
2. How to ensure the quality of mould?
Debug on the machine before delivery to ensure no quality problems before delivery.
3. What about our after-sales service?
There is a perfect after-sales service system, super long warranty period, any product problems can contact us at any time.
4. About the price?
Higher discount for bulk purchase, price can be negotiated.
5. How long will delivery take after placing an order?
High production efficiency,short delivery time, specific circumstances can be negotiated.
