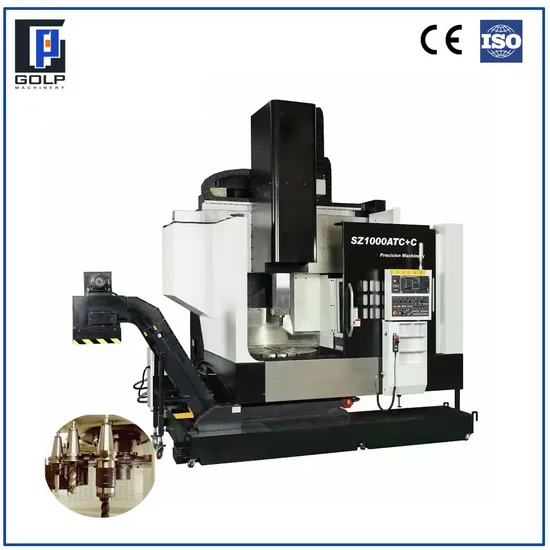

CNC Vertical Lathe with Full Servo 12t Bt50 Tool Magazine for Drilling/Milling/Turning

Product Description

CNC Large-scale Vertical Lathe Series: High Precision, High Rigidity, High Stability, Heavy Cutting, High Efficiency
Vertical lathes are capable of machining parts with diameters ranging from 1 to 3 meters.
Features A:The column is designed with an integrated box structure, and configured with largespan and wide hard rail contact surface, with small vibration and high stability
B: Designed with a lifting crossbeam and hydraulic locking mechanism, it is easy to operate and has strong maneuverability in machining range as well as a simple
structure;
C: The workbench adopts TIMKEN cross roller bearings from US to ensure that the spindle has high radial and axial bearing capacity at high and low speed, so as to achieve high precision, low noise and durability;
D: With high output power, drilling and milling accessories and CF axis control, it shows multifunctions of one machine, such as turning, milling, drilling and tapping.

Composite Function: Turning, Drilling, Milling and Grinding...

Standard machinery specifica		Unit	SZ1000ATC	SZ1000ATC+C
Machinery capability/capacity
Discface diameter		mm	ø1000	ø1000
Maximum rotation diameter		mm	ø1350	ø1350
Maximum cutting diameter		mm	ø1100	ø1100
Maximum cutting height		mm	900	900
Maxumum weight of machined object		kg	4000	4000
Amount of movement
Left and right(X-axis)stroke		mm	‐400,+720	‐400,+720
Up and down (Z-axis)stroke		mm	800	800
Crossbeam up/down stroke		mm	500	500
Spindle
Spindle speed	Low gear	rpm	1~160	1~160
	High gear	rpm	160~600	160~600
#2Spindle speed	Low gear	rpm		1~1200
	High gear	rpm		1200~2400
Maximum torque of spindle		N.m(kgf-m)	8240(840)	8240(840)
Feed speed
X-axis fast feed		m/min	12	12
Z-axis fast feed		m/min	10	10
Cutting feed		mm/min	1~2000	1~2000
Manual feed		mm/min	0~6	0~6
Automatic tool change device
Number of tool positions			12tool positions	16tool positions
Shank type		7/24 taper BT-50
Maximum tool size		mm	2800W×150T×400L
Maximum tool weight		kg	50	50
Maximum tool magazine capacity		kg	600	800
Tool change time(tool to tool)		Sec	40	40
Spindle metor
(FANUC)Spindle motor(FANUC)		kw	37/45(α40)	37/45(α40)
#2 spindle motor		kw		7.5/11(α8)
X-axis servo motor		kw	6(α40i)	6(α40i)
Z-axis servo motor		kw	6(α40iβ)	6(α40iβ)
CF-axis servo motor		kw		6(α40i)
Motor for cutting fluid pump		kw	1.5	1.5
(SIEMENS)Spindle motor(SIEMENS)		kw	37/51(1PH7167)	37/51(1PH7167)
#2 spindle motor		kw		7/9.3(1PH7103)
X-axis servo motor		kw	7.7(1FK7105)	7.7(1FK7105)
Z-axis servo motor		kw	7.7(1FK7105)	7.7(1FK7105)
CF-axis servo motor		kw		7.7(1FK7105)
Motor for cutting fluid pump		kw	1.5	1.5
Tank capacity
Hydraulic tank		L	60	60
Cutting fluid tank		L	750	750
Lubricating oil tank		L	4.6	4.6
Power specifications		AC220±10%.60Hz±5Hz
Power demand		KVA	65	65
Machine tool dimennsions(L×W×H)		mm	4700×3900×4500	4700×3900×4500
Machine weight approximately		kg	21,000	22,000
Accuracy		mm	Positioning accuracy:±0.007/500,repeated accueracy:±0.005,C-axis positioning accuracy:±7.5"/360°,C-axis repeated accueracy:±5"

ΔThe product is subject to design changes without prior natice.

Equipped With Special
Electromagnetic chuck	Workpiece measuring apparatus
Spindle center water outlet device	X-axis optical scale
Grinding device	Oil-water separator
Z-axis optical scale	Tool length detection device
Manual chuck can be changed to three-jaw,four-jaw or six-jaw hydraulic collet to reduce clamping time	Papertape fitte rfortool center water outlet

AUTOMATIC TOOL CHANGE SYATEM
Full Servo 12T BT50 Tool Magazine
Accurate positioning and error-free tool changing; the
tool magazine is driven by a servo motor, with fast positioning and high torque.
There are four types of tool positions (optional):
24,32,48 and 60.

AUTOMATIC TOOL CHANGE SYATEM
ATC+C Type
The design of tool magazine with 16 tool positions is
convenient for diversified machining requirements, and
the bidirectional nearby tool selection achieves
user-friendly control.
Δ Maximum weight of a single tool: 50kg.
Δ Maximum load of tool magazine:800kg.
Δ Maximum allowable tool size of ATC tool magazine is
Δ 280W×150T×400L.
Motor Base Gear Motor Shell Bearing Ring Bearing Cone
Gearring Wheel Drum Motor Base Housing Pump Body
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.

Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.
