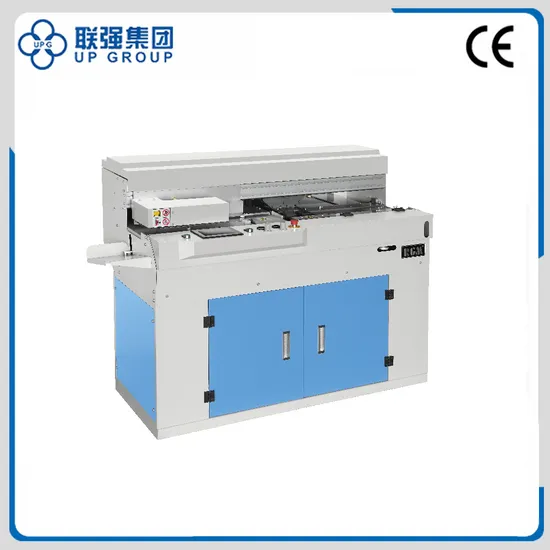

LQ-TS200/200B Full-automatic Intelligent Plastic Binder(PUR)

Product Description

Product Description Technical characteristics
1.Equipped with new color touch screen displayer and support multi languages.
2.Automatic adjuster with a memory system
3.Automatic book core thickness-measuring device is designed for special glued bookbinding.
4.Inserted with a close gluing system, which is used for gluing the back and side of the book with a 2KG pressure glue pot, with auto glue breakage system.
5.With auto glue cleaner, which makes it more easy to clean daily.
6.Equipped with an etamine coater
7.Auto adjustable up sealing clamper, it clamping time is adjustable.
Product Parameters

Speed	200 books/hr
Pieces	1
Binding size max	450*380mm
Binding size mini	120*100mm
Compressed air pressure max	0.8MPa
Binding thickness	2-50mm
Power	4.6kw
Weight	185kg
Overall measurement	1850*800*1230mm
