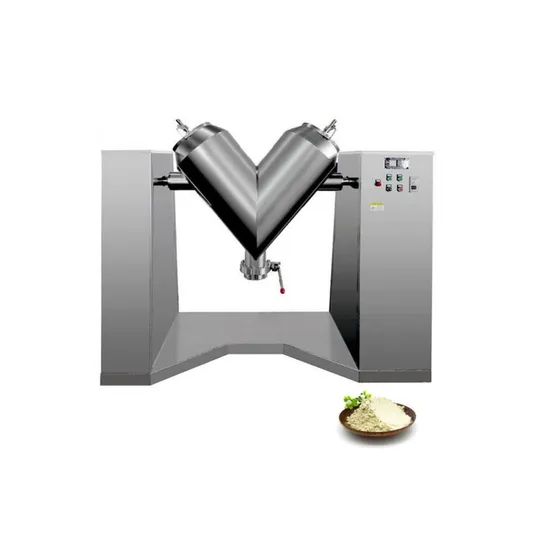

V Shape Mixer for Free-Flowing Chemical and Medical Blends
| US$1,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
V-5
Application Area
Pharmaceutical, Chemical
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
Mixer Type
V-Mixer
Layout Type
Verticle
Mixing Drum Shape
Circular Groove
Operating Type
Continuous Operating
Transport Package
Export Wooden Package
Specification
5-200kg
Trademark
SINOPED
Origin
China
Product Description
Product Description V type mixerV type mixer is high efficiency asymmetric mixer, it is ideal equipment to mixer powder and granule material. Can be widely used in Chemical, Food, Pharmaceutical, Fodder, Ceramic, Metallurgy.
Machine at one end equipped with motor and gear reducer, motor transfer to gear reducer by belt, reducer then transfer to V type mixing drum by coupling, making V drum continuous rotate, drive the material inside of the V type drum mixing up, down, left and right.
Product Parameters
| Model | Total volume(L) | Material capacity(L) | Working capacity(kg) | Rotating speed(rpm) | Power(kw) | Weight(kg) |
| V-1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| V-5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| V-8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| V-10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
Packaging & ShippingCompany Profile
