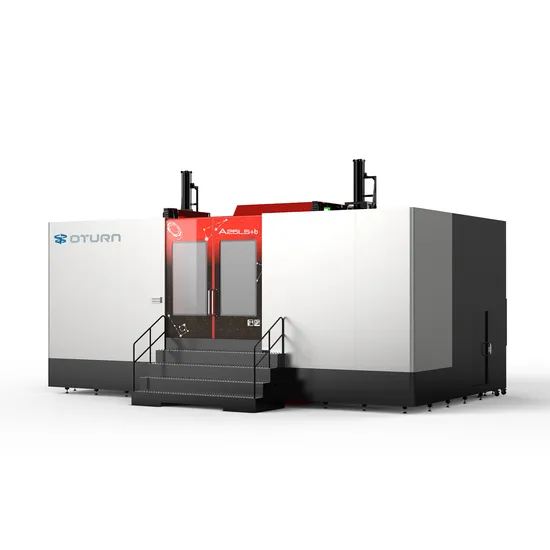

Oturn A25ls+B 5-Axis CNC Horizontal Machining Center High Precision A25ls+B CNC Milling Machine Automatic Machining Centre

Product Description

Product Description
The 5-axis Horizontal Cradle Machine Center A Series developed by Company has the characteristics of high rigidity, high precision and high efficiency processing.
Adopting the self-developed HSK E40/HSK A63/HSK A100 built-in spindle. Within the range of spindle rotation, eliminate jumping and vibration, and achieve stable accuracy in high-speed and long-term processing. The spindle uses forced cooling to cool the motor and front and rear bearings.

1. The whole machine adopts a moving column structure, with the tool moving three axes and the workpiece rotating two axes, which can achieve five axis linkage;
2. Lightweight design, linear axis 90M/min rapid displacement, acceleration 0.8G
3. Both A-axis and B-axis adopt a direct drive structure, with zero transmission chain, zero reverse clearance, and good rigidity; High precision angle encoding
Implement precise positioning.
4. T-shaped layout of the bed, X-axis stepped guide rail layout, light moving parts, and good stress condition;
5. The spindle adopts a high-speed electric spindle, which has fast speed and low noise;
6. Three linear axis roller guide rail, low friction, high rigidity.
Product Parameters

Item		Unit	A25LS+b
Travel	X/Y/Z axis travel	mm	2500*1500*1000
	Distance from spindle center to A-axis rotation center (Y)	mm	\
	Distance from spindle end face to A-axis rotation center (Z)	mm	\
	The distance between the B-axis disk surface and the A-axis rotation center	mm	\
	Distance from spindle center to workbench (Y)	mm	200-1700
	Distance from spindle end face to B-axis rotation center (Z)	mm	200-1200
	Maximum rotation diameter of B-axis	mm	2000
	Maximum rotation diameter of A-axis	mm	\
Spindle	Main spindle specifications (installation diameter/transmission method)	mm	Five axis head
	Spindle taper hole	mm	A63
	Maximum spindle speed	r/min	20000
	Rated power of spindle motor	kW	20/25
	Rated torque of spindle	N.m	25/31
Three aixs	X/Y/Z axis rapid displacement	m/min	120/120/120
	Axial acceleration	m/S²	10/10/10
	positioning accuracy	mm	0.01/0.01/0.008
	Repetitive positioning accuracy	mm	0.008/0.008/0.006
Five axis head	B-axis travel (five axis head)	o	±110°
	C-axis travel (five axis head)		±360°
	Maximum speed of B-axis (five axis head)	rpm	60
	Maximum speed of C-axis (five axis head)	rpm	60
	Five axis head positioning accuracy B/C	arc.sec	8/8
	Five axis head repetitive positioning accuracy	arc.sec	4/4
Turntable	Disc diameter	mm	2500*2500
	Allow load	kg	2500
	A-axis travel	o	\
	B-axis travel		360°
	Maximum speed of A-axis	rpm	\
	Maximum speed of B-axis	rpm	25
	A positioning accuracy/repeated positioning accuracy	arc.sec	\
	B positioning accuracy/repeated positioning accuracy	arc.sec	8/4
Tool Magazine	Tool magazine capacity	T	60
	Tool exchange time (T-T)	S	5
	Maximum tool diameter (full/empty)	mm	80/160
	Maximum tool length	mm	470
	Maximum tool weight	kg	8
Other	A positioning accuracy/repeated positioning accuracy	arc.sec	0.012/0.01/0.008
	B positioning accuracy/repeated positioning accuracy	arc.sec	0.01/0.008/0.006
	Machine Weight	T	50
	Machine Size	MM	10040*8226*5677
