12 spindles available mini laboratory wool yarn twisting frame

Product Description

Product Description
Product Description

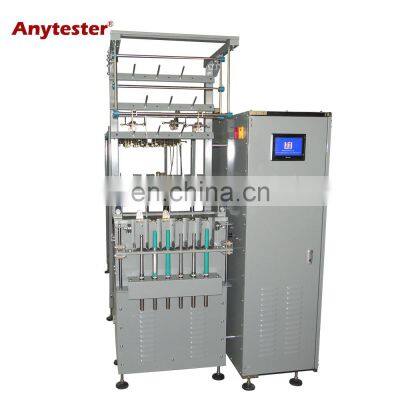

AT208 Laboratory Twisting Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and
it is used to twist plied yarn into folded yarns through ring spinning and twisting.
Features
★ It adopts touch screen and PLC control.
★ Imported frequency converter of high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for cotton fiber or wool fiber (alternative) with different parts
Specification

Model		AT208
Spindle number		12
Spindle length		205mm
Spindle speed		5000~20000 RPM
Spindle gauge		42mm
Roller diameter		25mm
Ring diameter		38/42/45mm
Output capacity		0.25 ~ 1kg/h
Max. output speed		42m/min
Twist range		1200 ~ 2000 twist/m
Power		220V/380V, 50/60Hz, 850W
Dimension		1200*800*1600mm

Packing & Delivery

Packaging
Size(mm)	1300 (L) * 900 (W) * 1800(D)
Weight	400Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.
