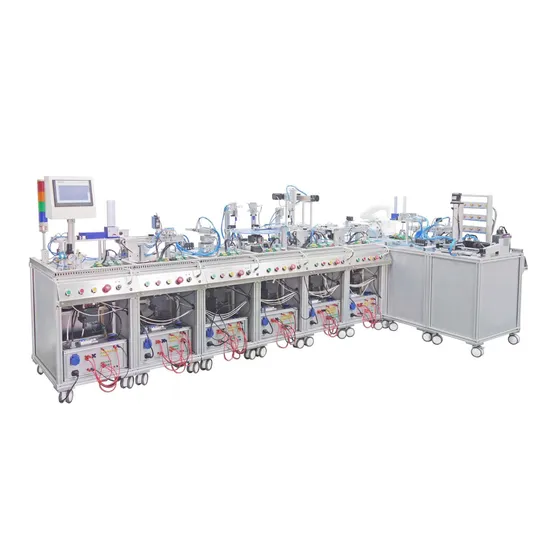

PLC Automatic Manipulator Production Line Educational Training Lab Laboratory Equipment with Robot

Product Description

CAM-001 Automatic Modular Flexible Production Training System (With Robot)Product Description
• Comprehensive modular production training system & integrates multi-technologies
This is a comprehensive modular production training and simulation system, it offers a complete solution for the study of modern factory automation and integrates a variety of technological applications, including mechanical & electrical & electronic & information & sensor & interface technologies, etc.
• Industrial grade components & simulate the various processes of factory production
Industrial grade components and control methods are used to fully demonstrate the modular production system, up to nine modular stations are included and each has its own focus, covering monitoring & feeding, detection & waste rejection, handling, processing, simulated heat treatment & marking, buffering, six freedom robot handling, assembly and stereoscopic storage.
• Quick connection & PLC external programming application
The input and output signal cables of each actuator are led to serial ports for quick connection with programmable logic controller unit, at the same time, the I/O of PLC are led to 4mm safety sockets for function expansion. That is, the PLC unit can not only be used for the logic control of modular station but also be taken out as an independent unit for external programming application.
• Flexible station combination & portable and lockable structure
All the stations can be combined with others to create systems, the complete unit is movable and lockable with complete aluminum profile structure.
Experiment Content

(1) Mechanical Structure Application	• Biaxial cylinder and guide slot formed single workpiece feeding mechanism • DC gear motor and conveyer belt formed transfer mechanism • Rotary cylinder and pneumatic gripper formed manipulator handling mechanism • Stepping motor and graduator formed intermittent motion mechanism • Biaxial cylinder and DC motor formed simulated drilling and marking mechanism • Synchronous belt and pneumatic gripper formed reciprocating handling mechanism • Conveyor and two biaxial cylinder formed workpiece buffering mechanism • Robot arm related multiple position handling • Biaxial cylinder and compact cylinder formed single workpiece blanking mechanism • Two-axis lead screw and manipulator formed automatic stereoscopic warehouse workpiece placement • Sensor and warehouse formed data feedback mechanism
(2) Pneumatic Structure Application	• Cylinder: pneumatic actuator • Bus board: air source distribution for solenoid valve • Solenoid valve: for electrical control of mechanical mechanism • Throttle valve speed control: for air flow control • Filter: pressure control and water filtration • Air compressor: air pressure generator
(3) Electrical Control Application	• Siemens S7-200 programmable logic controller system • Sensors: magnet sensor, optical fiber sensor, reflective sensor, analog sensor, photoelectric sensor, laser sensor, color mark sensor, metal sensor, limit switch, limit groove type sensor, micro switch, etc. • Power supply and operating panel • Controller module, interface module, indicators, etc.
(4) Programming Application	• Sequential structure, selective structure and cycle structure • Switching value realized cylinder motion control, gear motor control, indicator control • Pulse value realized stepping motor control, servo motor control • Analog value realized sensor data reception, SCR conduction angle control • Robot motion programming • Fieldbus realized data exchange • Human machine interface measurement and control

Configuration

HMI Monitoring Control and Feeding Unit	Assembly Unit	Handling Unit
Simulated Heat Treatment & Marking Unit	Stereoscopic Storage Unit	Buffering Unit
Manipulator Transfering Unit/Six Freedom Robot Handling Unit	Detection & Waste Rejection Unit	Processing Unit
Air compressor	Accessories	Manual

Note: This product adopts modular design, and users can purchase any stations seperately.
1. HMI Monitoring Control and Feeding Unit • SIMATIC HMI SMART 700 IE V3
• Metal column for heat treatment and marking process
• Waste column for rejecting process
• 24V DC vertical alarming light with four colors
• Portable programmable logic controller unit
2. Detection & Waste Rejection Unit
• Conveyor belt mechanism, sensors
• Reflective sensor for workpiece arrival detection
• Sliding slot for waste workpiece storage
• Portable programmable logic controller unit
3. Handling Unit
• Guide rod cylinder #1 with magnet switches and throttle valves
• Guide rod cylinder #2 with magnet switches and throttle valves
• Rotary cylinder with magnet switches and throttle valves
• Portable programmable logic controller unit 4. Processing Unit • Six-position rotary disc & stepping motor & driver mechanism
• Laser sensor for workpiece entrance detection
• Metal sensor for rotary disc positioning
• Color sensor for drilling #1 detection
• Portable programmable logic controller unit
5. Simulated Heat Treatment & Marking Unit
• Laser sensor for workpiece entrance detection
• Laser sensor for workpiece arrival detection
• Laser sensor for workpiece export detection
• Portable programmable logic controller unit
6. Buffering Unit
• 5/2 way single solenoid valve
• Optical fiber and metal sensors for workpiece export detection
• Biaxial cylinder #1 with magnet switches for stopping
• Portable programmable logic controller unit 7. Six Freedom Robot Handling Unit • Robot
• Pneumatic gripper with magnet switches and throttle valves
• 5/2 way double solenoid valve x1 with bus bar
• Portable programmable logic controller unit
8. Assembly Unit
• Optical fiber and metal sensors for workpiece export detection
• Charging barrel #1 & compact cylinder with throttle valves
• Laser sensor #1 for workpiece unloading detection
• Portable programmable logic controller unit
9. Stereoscopic Storage Unit
• Guide rod cylinder & pneumatic gripper
• Ball screw
• Operating panel: start / stop / reset / emergency
• 5/2 way single solenoid valve
• 5/2 way double solenoid valve
• Portable programmable logic controller unit

>> After-sales Service
Guidance	Installment guidance
	Experiment guidance
Warranty	One year warranty, lifetime maintenance
