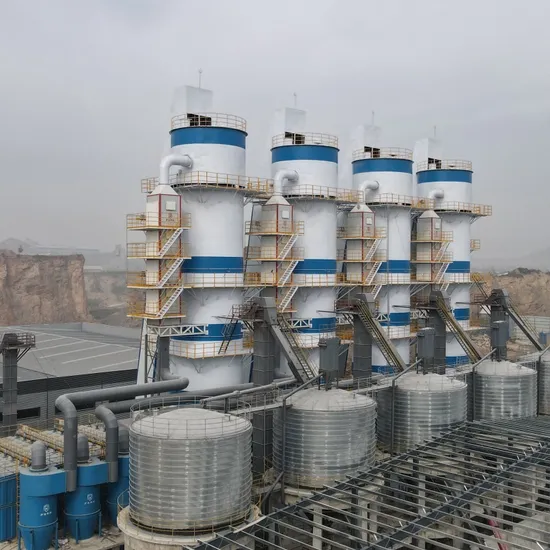

Large Capacity Calcium Oxide Lime Kiln for Efficient Production and Custom Design

Product Description

Large Capacity Lime Kiln for Efficient Production and Custom Design
Product Introduction
The vertical shaft lime kiln stands as a towering masterpiece of precision engineering, meticulously designed for the efficient and precise burning of lime. This innovative kiln boasts a robust all-steel cylindrical structure that harnesses the power of heat exchange, orchestrating a symphony between the gravitational descent of raw materials and the ascent of hot gases, resulting in lime of unparalleled quality.stone. Materials are methodically introduced at the summit and harvested from the base following calcination. The internal temperature gradient ingeniously segregates the kiln into three distinct and essential zones, enabling optimal processing at each stage. it is divided into the preheat zone, the calcination zone, and the cooling zone, each playing a crucial role..
In the preheat zone, materials are gently coaxed by the comforting warmth of flue gas; in the calcination zone, they are meticulously calcined through the powerful heat generated by fuel combustion; and in the cooling zone, the freshly calcined materials impart their heat to incoming cool air, cooling themselves while preheating air for the calcination zone. This sophisticated system ensures each phase of the calcination process is executed with seamless precision. Incorporating groundbreaking technology, it optimizes the use of economical energy sources, including environmentally-challenging gases such as converter gas, blast furnace gas, and calcium carbide furnace tail gas, transforming potential waste into valuable energy assets.
Product Advantages
1) Energy Efficiency: after combustion, the remaining hot flue gas ingeniously preheats incoming materials, maximizing energy efficiency and reducing output flue gas temperature to an impressive range of 170~300ºC.
2) The kiln lining is composed of four layers of resilient refractory materials, providing exceptional thermal insulation. The kiln shell maintains a temperature just 60°C above ambient, dramatically reducing excessive energy consumption.
3) Typically, the refractory materials enjoy an extended life span of 6 to 10 years, ensuring durability and cost-efficiency.
4) Displaying remarkable fuel adaptability, the kiln operates seamlessly with various fuels. From mixed fuels like lump coal and coke, to high-calorific gases like natural gas and coke oven gas, and alternative fuels such as converter gas, blast furnace gas, and low calorific fuels like coal gas and generator gas, it showcases unrivaled flexibility. Additionally, fuel oil options like heavy oil and diesel further enhance its versatility.
5) Thanks to its vertical shaft design, the strategic angle of the single bucket elevator, and an intelligently compact layout, space is utilized to its maximum potential, ensuring efficiency and effectiveness.
6) Lower investment costs are a highlight of our kiln, characterized by a streamlined steel structure with fewer machined parts, significantly reducing processing expenses. Its design simplifies installation and supports the construction of refractory materials effortlessly, ensuring a seamless operational setup.
Main Technical Specifications

Capacity (t/d)	100	150	200	300	400
Distributor	BL-2	BL-2	BL-3	BL-3	BL-4V
Vertical Kiln	150m³	200m³	250m³	400m³	500m³
Calcination. Temp/
Energy Consumption Index /(kCal/kg Lime)
Power Consumption Index /(kW·h/t Lime)
Light & Over Burnt Rate /%		≤13
Lime Activity /ml		220~280(depends on the composition of limestone)
Lime Discharging Temperature /ºC		Ambient Temperature+60
Limestone Feeding Size /mm		30~80/80~120
Working Days / Days Per Year		≥340
Fuel Type		Coal Powder, natural gas, lump petroleum coke, biomass fuel, etc.

Process Flow Chart
