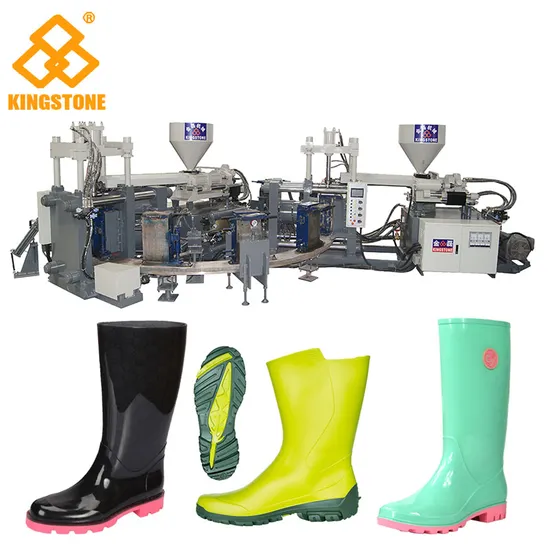

Automatic Rotary Two Colour Plastic Rain Shoe Injection Molding Machine
| Negotiable | 1 SET (MOQ) |
Basic Info.
Model NO.
JL-288-2C
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Injection
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Name
Gumboots Making Machine
Machine Type
Injection Molding Machine
Work Stations
10/12/16
Machine Weight
18 Tons
Power Consumption
25-30 Kw/H
Mould
One Mould One Piece
Mould Weight
400kg Per Pair
Finished Products
Rain Boot, Gumboots
Shipping Terms
Fob Shenzhen
Transport Package
Standard Export Package
Specification
7.5*7.2*2.5 m
Trademark
Kingstone
Origin
Dongguan City, China
HS Code
8477101090
Product Description
>> DescriptionsRaw Material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
Products: Specially designated to manufacture different height full plastic rain boots gumboots and shoes.
>> Machine specifications
| Machine model | JL-288-2C | |
| Mould-clamping Unit | ||
| Work station | 10,,12,16 | |
| Clamping force | TON | 220 |
| Opening stroke | MM | 210 |
| Mould dimension | MM | 420*320 |
| Height of injection nozzle | MM | 280 |
| Injection Unit | ||
| Injector | SET | 1 |
| Screw diameter | MM | 90/95,85/80 |
| Screw L/D ratio | L/D | 19 |
| Max.injection volume | cm3 | 1500-1700 |
| Injection speed | Cm/s | 520 |
| Screw rotation speed | R.P.M | 0-200 |
| Electricity Consumption | ||
| Heating power of injector | KW | 7*2 |
| Hydraulic unit motor | KW | 22.5,18.5 |
| Total electric consumption | KW | 55 |
| Temperature control | Section | 4 |
| Dimension and Weight | ||
| Machine dimension | (L*W*H)MM | 7500*7200*2500 |
| Machine weight | KGS | 18000 |
| *Note:Above data only for reference. | ||
>> Machine Photos
>> Finished Products
>> Machine drawing
>> Package & Shipping
