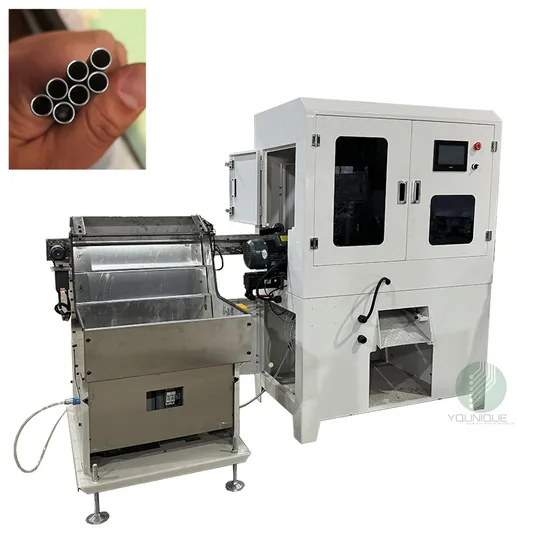

Manufacturing Metallic Machinery Tube Deburring Pipe Beveling Bar Double Head Chamfering Tooling Machine

Product Description

Product Description
Equipped with PLC panel control, automatic tube chamfering machine can be devided into vibrating plate and manpower discharging. Our YE-Z3 Automatic tube chamfering machine' feeding is controlled by a vibrating plate or plunger lift. Various configuration possibilities allow for a variety of applications to be double head chamfer with length from 10 to 300 mm. An optimal combination of proven state-of-the-art components results in outstanding production rates.
Vibration plate or plunger lift controls feeding. The center point is easy to adjust, the length of the size is adjusted with rack and pinion, accurate and stable. The cutter head adopts taper type, the cutter head is easy to grind. Technical Parameters about YE-Z2H Automatic tube chamfering machine

project	Technical parameters
The power supply voltage	380v 50Hz
The external air pressure	0.6-0.8 MPa
The work piece length	10-300 mm
Machining diameter	pipe tube ∅3-∅40, bar tube ∅3-∅40
Processing speed	Processing times 20 to 40 times per minute
The length of tolerance	±0.05 mm
The motor power	1.5 KW-2
Spindle speed	2500-2800 RPM
Feeding way	vibration disk or plunger lift
Processing range	Suitable for copper tube and aluminum tube . Inside. Outside. Two head chamfering flat bar
Machine size/weight	2200 mm * 1100 mm * 1620 mm / 600 kg

Main Application
Company Profile
Certifications
Packaging & Shipping
FAQ
Q: How to choose the pipe/tube chamfering machines?
A: You have to inform us following details:
-Pipe Outdiameter Range
-Wall Thickness Range
-The Pipe Material
-Chamfering Angle
-Chamfering Length
-Tube Original Length
-Which Sides Need Do Chamfering
Q: What delivery time for standard machine?
A: Within 35 working days after received advanced payment.
Q: What about your machine warranty?
A: One year warranty after machine reached customer's workshop.
And will responsible for lifetime maintenance
Q: What about delivery terms and payment terms?
A:Delivery terms: 50% deposit, 50% paid before shipment.
FOB Ningbo, ClF your port
Payment Terms: T/T. L/C
Q: How about your service?
A: Before Sales Serive:
1. We will confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory and workshop before you place an order.
After Sales Service:
1. We provide manual,detalled machine installation,commissioning video for operate machine.
2. We provide free installation,commissioning and training at our factory.
if you need engineer go to your factony for machine training, air ickets,food,hotel, localtransportation, engineer's salary should be at your account
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours
